Description

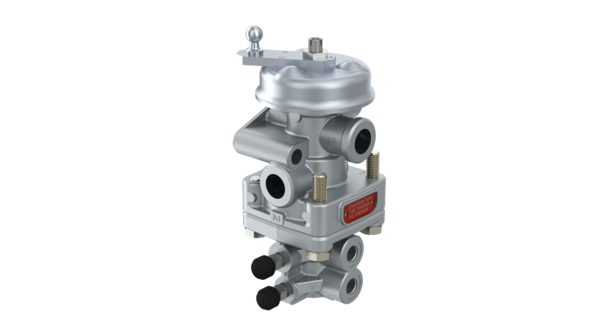

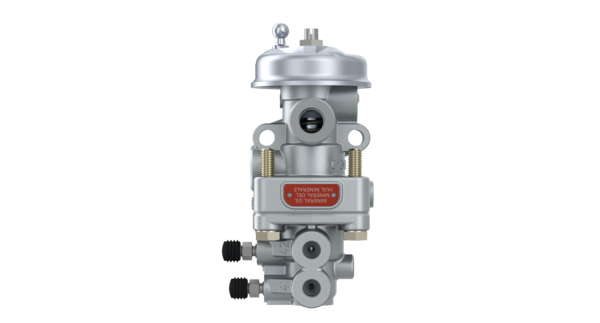

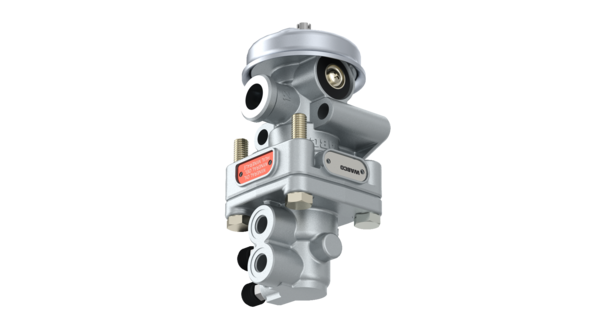

Trailer Control Valve
Part Number: 4700152150
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.897 |
| Comments | Circuit 2 |
| Delivered pressure | 20.0 bar |
| Distance between bolts | 48 mm |
| Distance between holes | 26 mm |
| Exhaust | Flap |
| Max. operating pressure | 7.0/50.0 bar |
| Medium | Mineral oil |
| Mounting | 2x Ø9.0 mm |
| Port thread 1 | M16 x 1.5 |
| Port thread 2 | M16 x 1.5 |
| Port thread 41 | DIN 74235 – FL M10 x 1 |
| Port thread 42 | DIN 74235 – FL M10 x 1 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Version | 2 Circuit |
| GTIN | 7895851073456 |
| Size (mm x mm x mm) | 70 x 149 x 86 |
| UPC | 193133309819 |
| Weight (kg) | 0.908 |
| Weight (lb) | 2.002 |
OEM Cross References
| Brand | Reference No |
|---|---|
| AGCO | 4293832M1 |
| DAF | 1506126 |
| JOHN DEERE | AL81937 |
| MERITOR | S4700152150 |
| RENAULT | 7700063841 |
| RENAULT | 11047230 |
| TEREX | 60454740 |
