Description

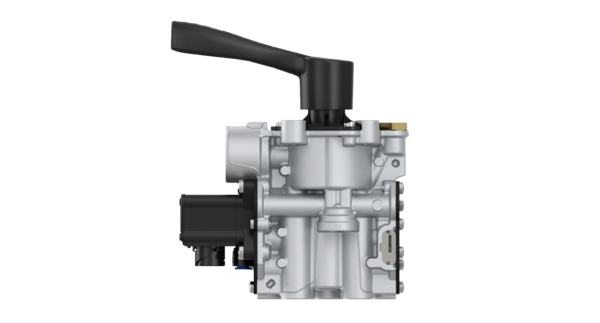

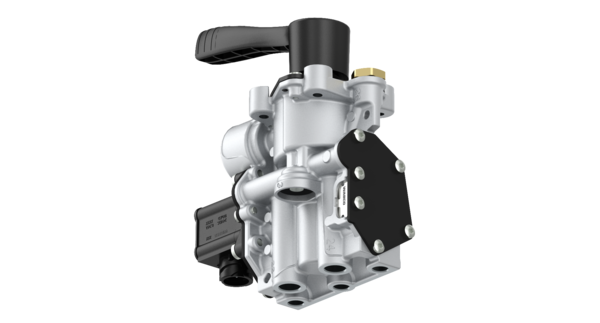

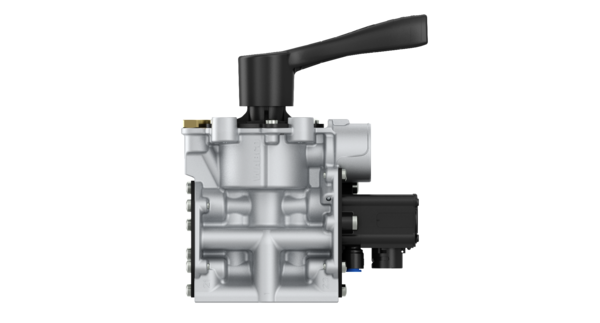

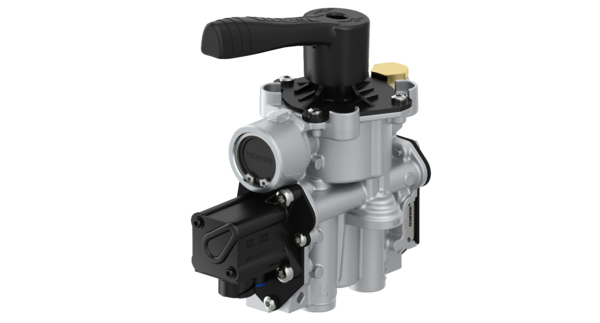

Trailer Air Suspension Control Valve
Part Number: 4630903140
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 3.79 |
| Distance between holes | 56.6×56.6 mm |
| Electrical connection | DIN 72585-A1-3.6-Sn/K2 |
| Handle length | 122 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | 4× M8 |
| Port thread 1 | M12 x 1.5 |
| Port thread 1-1 | Ø 8×1 |
| Port thread 21 | M12 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port thread 23 | M12 x 1.5 |
| Port thread 24 | M16 x 1.5 |
| Product category | Device |
| Protection class | IP 6K9K |
| Rated current | 0.34 A |
| System | Height limitation |
| Technical specification | OE specification |
| Temperature range | -40 to +65 °C |
| Type | 2-circuit |
| Voltage | 24 V |
| GTIN | 04057885108273 |
| Size (mm x mm x mm) | 210 x 190 x 95 |
| UPC | 193133501671 |
| Weight (kg) | 1.67 |
| Weight (lb) | 3.682 |
