Description

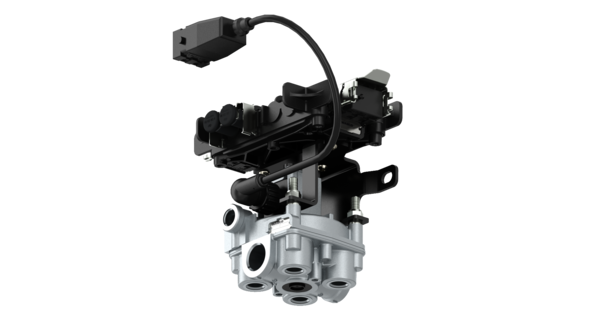

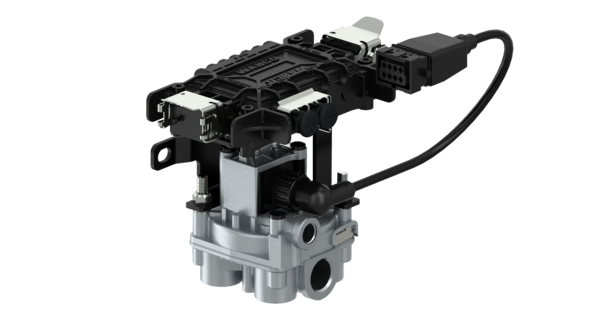

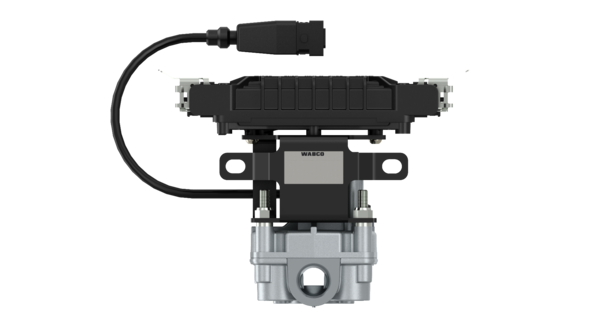

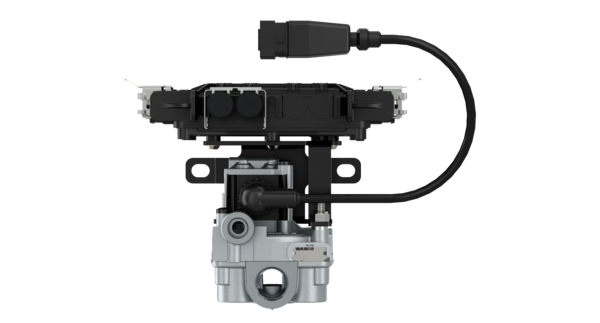

Trailer ABS
Part Number: 4005001010
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 6.24 |
| Max. operating pressure | 13.0 bar |
| Port thread 1 | 2x 3/4 – 14 Dry Seal NPTF |
| Port thread 2 | 4x 3/8-18 Dry Seal NPTF |
| Port thread 3 | Flap exhaust |
| Port thread 4 | 3/8″ – 18 Dry Seal NPTF |
| Product category | Device |
| Protection class | IP 66 |
| System | 2S/1M MSH |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Type | TCS II Basic |
| Voltage | 12 V |
| GTIN | 04057875081722 |
| Size (mm x mm x mm) | 200 x 240 x 130 |
| UPC | 193133427858 |
| Weight (kg) | 2.128 |
| Weight (lb) | 4.691 |
OEM Cross References
| Brand | Reference No |
|---|---|
| FREIGHTLINER | TDAS4005001010 |
| GREAT DANE | 40502935 |
| HYUNDAI | 10008469 |
| INTERNATIONAL | S4005001010 |
| KENWORTH | S400-500-101-0 |
| MACK | 6300-4005001010 |
| MANAC | 22801004 |
| MANAC | 228-01004 |
| MERITOR | S4005001010 |
| PETERBILT | S400-500-101-0 |
| STOUGHTON | 46040401200 |
| UTILITY TRAILER | MES4005001010 |
| UTILITY TRAILER | 3-9350-073 |
| UTILITY TRAILER | 03-9350-073 |
| UTILITY TRAILER | 393500073 |
| VANGUARD | 1ABS00002 |
| VANGUARD | 2ABS00002 |
| VOLVO | TDA-S4005001010 |
| VOLVO | WAB4005001010 |
| WABASH | RWW4005001010 |
