Description

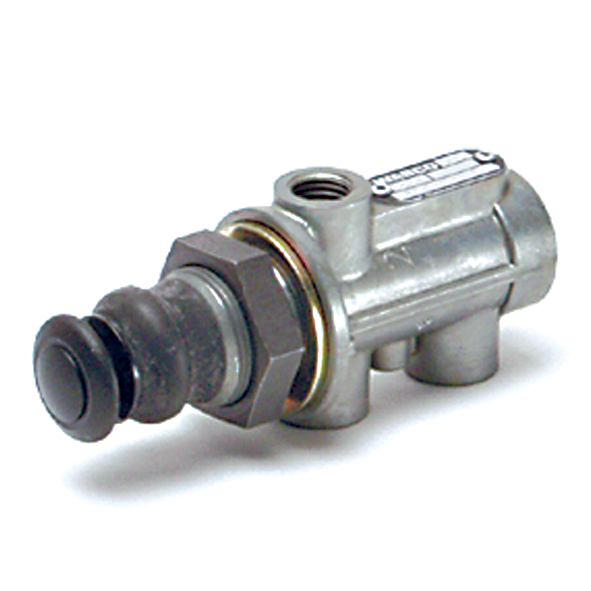

Three Way Valve
Part Number: 4630131160
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuating range | 5.7 mm |
| Actuation | Push |
| Calculated Volume (dm³) | 0.18217 |
| Comments | With hex.nut : M 26×1.5 |
| Exhaust | M12 x 1.5 |
| Handle length | 46.9 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | M26 x 1.5 |
| Nominal diameter | 4.0 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Port thread 3 | M12 x 1.5 |
| Product category | Device |
| Stroke | 5.7 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | 3/2 |
| GTIN | 04057875212348 |
| Size (mm x mm x mm) | 102 x 47 x 38 |
| UPC | 193133442394 |
| Weight (kg) | 0.23 |
| Weight (lb) | 0.50706 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ALEXANDER DENNIS | AB4630131160 |
| DAF | 0639394 |
| DAF | 639394 |
| DAF | 1761990 |
| ERF | 236950 |
| EVOBUS | 8283732000 |
| EVOBUS | A0012609157 |
| FAUN | 99708458325 |
| FREIGHTLINER | 9628S4630131160 |
| FRUEHAUF | T64172M36A02 |
| GOLDHOFER | 160187 |
| IRISBUS | 4782794 |
| IRISBUS | U403003797 |
| IVECO | 02564591 |
| IVECO | 04782794 |
| IVECO | 04604222 |
| IVECO | 61232936 |
| IVECO | 4782794 |
| IVECO | 30416 |
| IVECO | 0478 2794 |
| IVECO | 4604222 |
| KENWORTH | S463-013-116-0 |
| KOMATSU | 20790140 |
| KÄSSBOHRER | 82837320000 |
| KÄSSBOHRER | GT070239 |
| LEYLAND DAF | 249049 |
| LEYLAND DAF | 639395 |
| LIEBHERR | 5029262 |
| LOHR | A05110520 |
| LOHR | 4630131160 |
| MACK | 6300-4630131160 |
| MAN | 81156106004 |
| MAN | 81521856009 |
| MAN | 81521856014 |
| MAN | 81521856041 |
| MAN | 88521636206 |
| MAN | 81521859014 |
| MAN | 4630131160 |
| MAN | 236950 |
| MERCEDES-BENZ | 0004340501 |
| MERCEDES-BENZ | 0004340801 |
| MERCEDES-BENZ | 0004341001 |
| MERCEDES-BENZ | 0004341101 |
| MERCEDES-BENZ | 0004342101 |
| MERCEDES-BENZ | 0004342301 |
| MERCEDES-BENZ | 0004342401 |
| MERCEDES-BENZ | 0004342901 |
| MERCEDES-BENZ | 0004343001 |
| MERCEDES-BENZ | 0004343101 |
| MERCEDES-BENZ | 0007631252 |
| MERCEDES-BENZ | 0012609157 |
| MERCEDES-BENZ | A0012609157 |
| MERITOR | S4630131160 |
| NEOPLAN | 110246400 |
| NEOPLAN | 11017347 |
| NEOPLAN | 1102462544401 |
| PACCAR | 1505075 |
| PETERBILT | S463-013-116-0 |
| RENAULT | 5021170181 |
| RENAULT | 5000786419 |
| SCANIA | 0340178 |
| SCANIA | 340176 |
| SCANIA | 340178 |
| SCANIA | 1934904 |
| SCHMITZ CARGOBULL | 82837320000 |
| SCHWARZMÜLLER | 13761 |
| TEREX | 96925200 |
| VDL | 20190478 |
| VOLVO | WAB4630131160 |
