Description

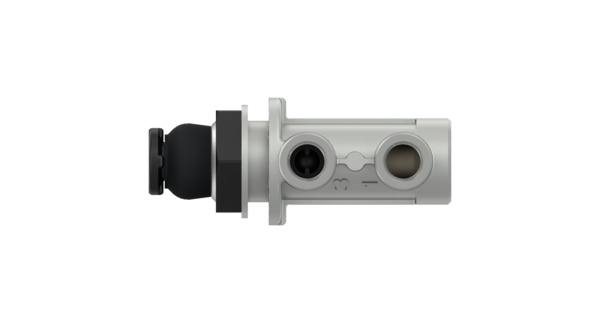

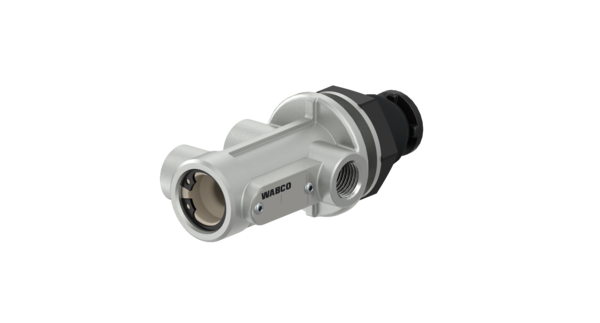

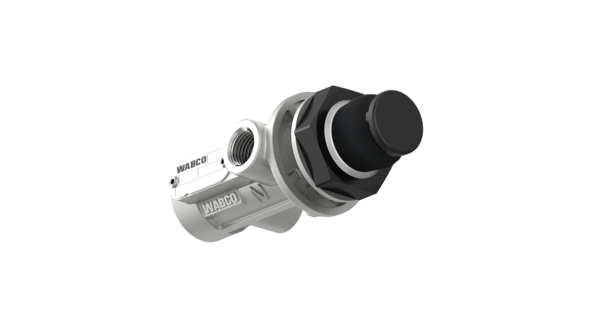

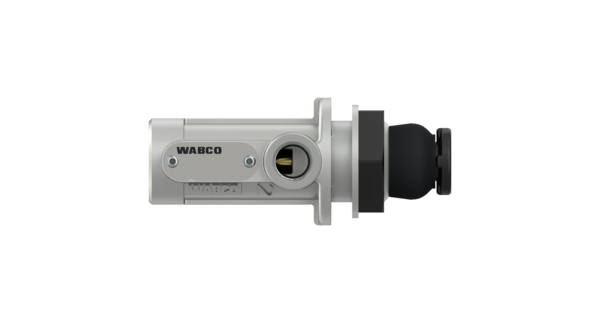

Three Way Valve
Part Number: 4630131240
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuation | Push |
| Calculated Volume (dm³) | 0.15984 |
| Comments | No locking function |
| Exhaust | M12 x 1.5 |
| Handle length | 37.9 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | M26 x 1.5 |
| Nominal diameter | 4.0 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Port thread 3 | M12 x 1.5 |
| Product category | Device |
| Stroke | 5.7 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | 3/2 |
| GTIN | 04057875212393 |
| Size (mm x mm x mm) | 96 x 37 x 45 |
| UPC | 193133306283 |
| Weight (kg) | 0.236 |
| Weight (lb) | 0.52029 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1505076 |
| IVECO | 42021846 |
| IVECO | 42021856 |
| KEMPF | 2123001 |
| KRONE | 505810843 |
| KRONE | 505810843X |
| MERCEDES-BENZ | 0004343401 |
| PACCAR | 1505076 |
| SCANIA | 1934906 |
| VAN HOOL | 10686177 |
