Description

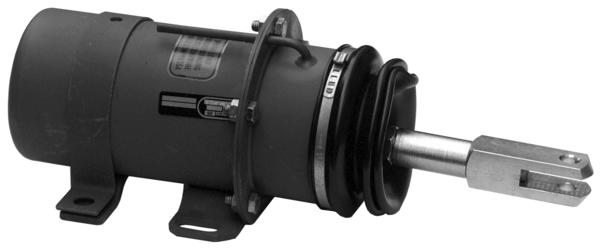

Spring Brake cylinder
Part Number: 4253070130
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 7.8532 |
| Clevis pins | 12 mm |
| Con-rod length | 379 mm |
| Diameter | 100.0 mm |
| Distance between bolts | 125 mm |
| Max. operating pressure | 8.0 bar |
| Output force | 4320 N |
| Port thread 11 | M16 x 1.5 |
| Port threads | M16 x 1.5 |
| Product category | Device |
| Push-rod thread | M16 x 1.5 |
| Release pressure | 6.3 bar |
| Stroke | 80.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | With boot |
| Type of operation | Cam |
| Wrench size | 13/24 mm |
| Yoke | With |
| GTIN | 04057875167914 |
| Size (mm x mm x mm) | 394 x 132 x 151 |
| UPC | 193133481164 |
| Weight (kg) | 6.11 |
| Weight (lb) | 13.47 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1517957 |
| EVOBUS | A0044208518 |
| FENDT | G822880020140 |
| IVECO | 04464604 |
| MAFI | 5680028 |
| MAFI | 0005680028 |
| MAN | 34504106002 |
| MERCEDES-BENZ | 0044208518 |
| MERCEDES-BENZ | A0044208518 |
| NEOPLAN | 070247500 |
| NEOPLAN | 70247500 |
