Description

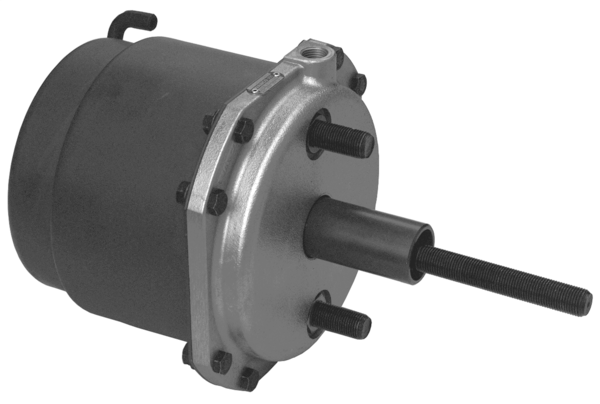

Spring Brake Cylinder 24
Part Number: 9254070030
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Bolt lengths | 32.0 mm |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 12.8484 |
| Cooling | Air |
| Distance between bolts | 120.6 mm |
| Max. operating pressure | 10.0 bar |
| Nominal diameter | 8.5 mm |
| Output force | 10000 N |
| Port thread 11 | M16 x 1.5 |
| Port thread 12 | M16 x 1.5 |
| Product category | Device |
| Push-rod thread | M16 x 1.5 |
| Release pressure | 4.9 bar |
| Stroke | 65.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total length | 100.0 mm |
| Type | Without boot |
| Type of operation | Cam |
| Yoke | No |
| GTIN | 04057875278627 |
| Size (mm x mm x mm) | 356 x 187 x 193 |
| UPC | 193133447955 |
| Weight (kg) | 6.939 |
| Weight (lb) | 15.298 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1506382 |
| KÄSSBOHRER | 21570000059 |
| SCANIA | 1935398 |
| TIRSAN | 21570000059 |
