Description

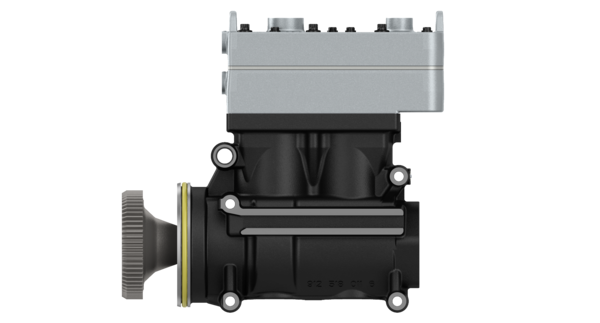

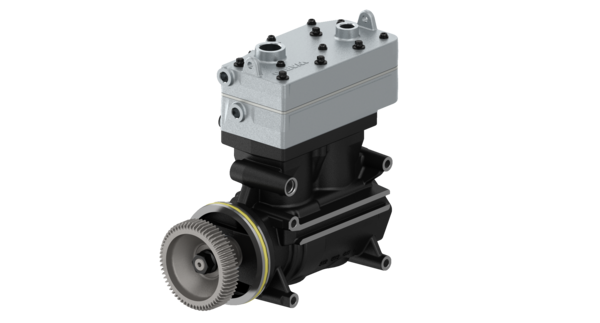

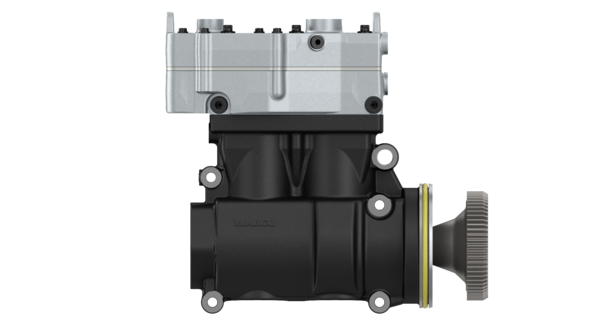

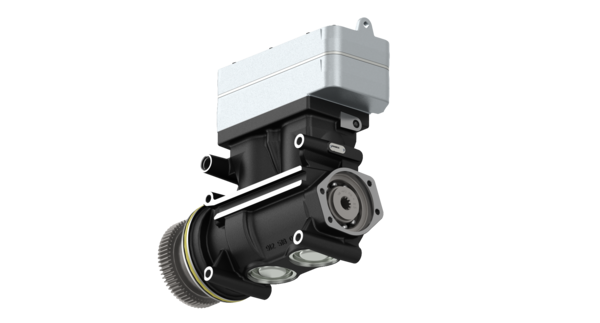

Special Twin-Cylinder compressor, 2-stage, flange mounted
Part Number: 9125180040
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 96 |
| Cooling | Water |
| Crankshaft thread | M20 x 1.5 |
| Lubrication | Lubrication supplied from engine |
| Max. operating pressure | 12.5 bar |
| Mounting | Flange mounting |
| Operating speed | 3000 (1/min) |
| Piston diameter | 85 mm |
| Piston stroke | 62/21 mm |
| Port thread 0 | M33 x 2 |
| Port thread 2 | M22 x 1.5 |
| Port thread 4 | M14 x 1.5 |
| Port thread 8.1 | M22 x 1.5 |
| Port thread 9.1 | M16 x 1.5 |
| Port thread 9.2 | M16 x 1.5 |
| Product category | Device |
| Swept volume (cm³) | 352/119 cm3 |
| Technical specification | OE specification |
| Type | Twin Cylinder |
| GTIN | 7895851076440 |
| Size (mm x mm x mm) | 600 x 400 x 400 |
| UPC | 193133345251 |
| Weight (kg) | 28.586 |
| Weight (lb) | 63.0213 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1674920 |
| DAF | 1681561 |
| DAF | 1687079 |
| DAF | 1622355 |
| DAF | 1624400 |
| DAF | 1696197 |
