Description

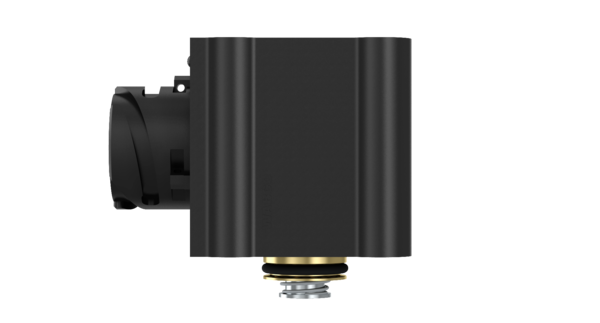

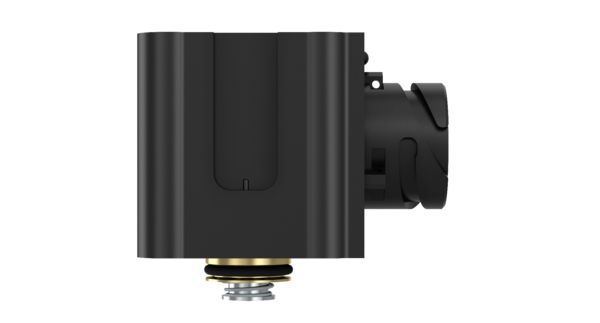

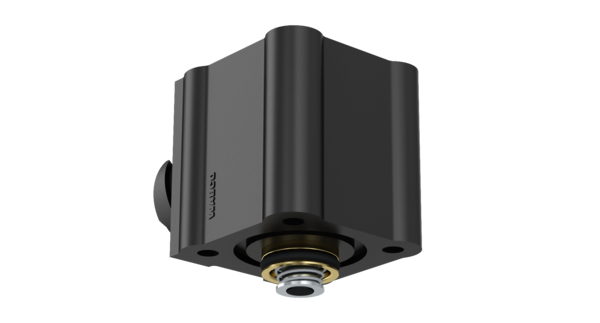

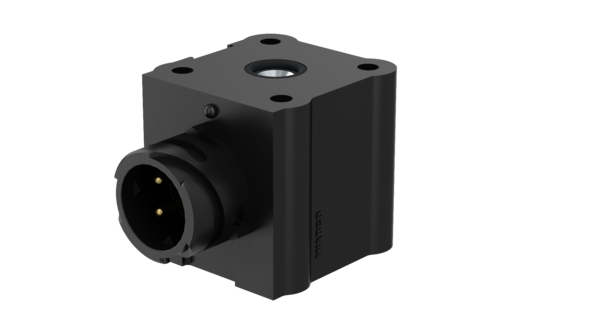

Solenoid
Part Number: 4420012221
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 1.6132 |
| Comments | Solenoid |
| Cooling | Air |
| Electrical connection | Bayonet DIN 72585-A1-3.6-Sn/K2 |
| Max. operating pressure | 13.0 bar |
| Mounting | 4x Ø 4.5 mm |
| Multi nominal diameter (from port 1 to x) | 1.0 mm |
| Nominal diameter | 1.0 mm |
| Product category | Device |
| Protection class | IP 6K7 |
| Rated current | 340 mA |
| Stroke | 0.8 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | 3/2 |
| Voltage | 24 V |
| GTIN | 04057875184324 |
| Size (mm x mm x mm) | 167 x 161 x 60 |
| UPC | 193133263456 |
| Weight (kg) | 0.182 |
| Weight (lb) | 0.401241 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MERCEDES-BENZ | 0005433785 |
