Description

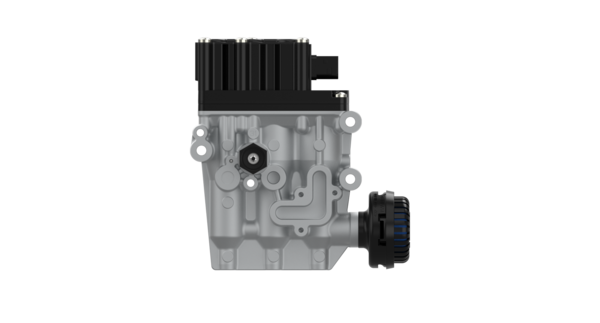

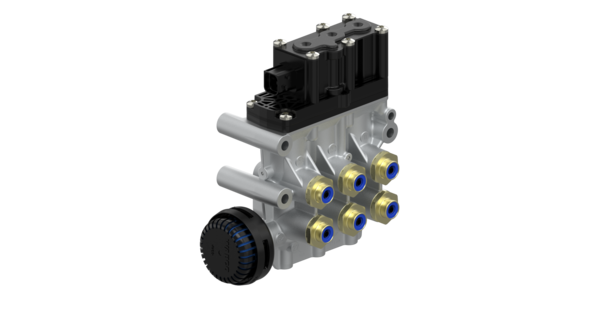

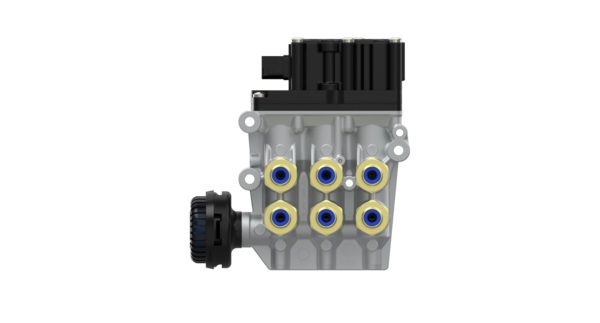

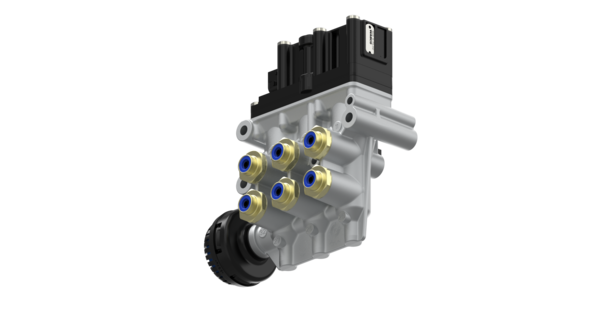

Solenoid Valve
Part Number: 4630841020
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuation | Electrical |
| Application | T EBS, ECAS, Immobilizer |
| Calculated Volume (dm³) | 4.389 |
| Electrical connection | TYCO HDSCS 4×2.8 CODING B |
| Exhaust | Silencer |
| Max. operating pressure | 12.0 bar |
| Mounting | 3 x Ø 20 mm |
| Port thread 11 | Push In 8 x 1 |
| Port thread 22 | Push In 8 x 1 |
| Port thread 23 | Push In 8 x 1 |
| Port thread 25 | Push In 8 x 1 |
| Port thread 26 | Push In 8 x 1 |
| Port thread 27 | Push In 8 x 1 |
| Port thread 31 | Flap exhaust |
| Port thread 32 | Silencer |
| Product category | Device |
| Protection class | IP6K9K IP6K8 |
| Rated current | 625 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Type | LACV-IC |
| Version | Dual-circuit |
| Voltage | 12 V |
| GTIN | 04057885409080 |
| Size (mm x mm x mm) | 210 x 190 x 110 |
| UPC | 193133566687 |
| Weight (kg) | 2.116 |
| Weight (lb) | 4.665 |
