Description

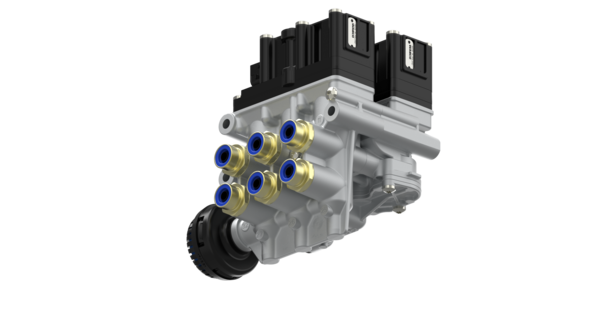

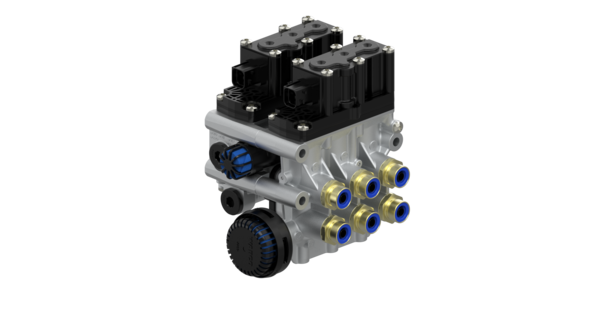

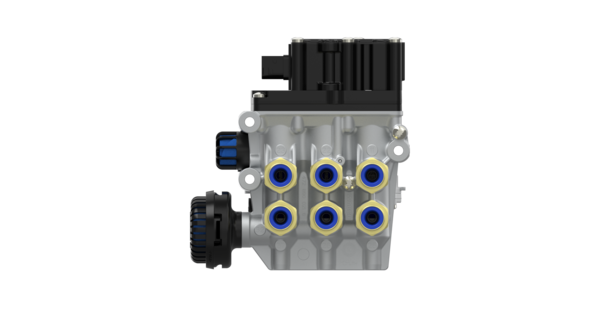

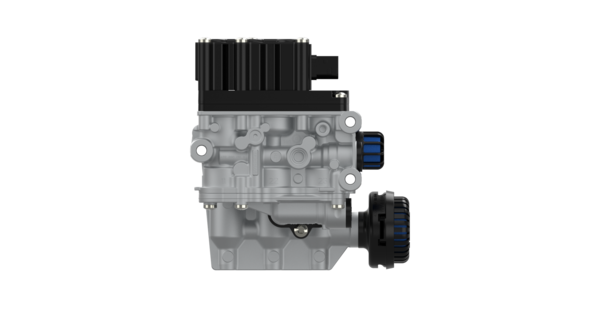

Solenoid Valve ,ECAS
Part Number: 4728901160
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuation | Electrical |
| Calculated Volume (dm³) | 6.131 |
| Cooling | Air |
| Electrical connection | TYCO HDSCS 4 x 2.8 CODING B |
| Max. operating pressure | 12.0 bar |
| Mounting | 3 x Ø 8 mm |
| Port thread 11 | Push In 12 x 1.5 |
| Port thread 22 | Push In 12 x 1.5 |
| Port thread 23 | Push In 12 x 1.5 |
| Port thread 25 | Push In 12 x 1.5 |
| Port thread 26 | Push In 12 x 1.5 |
| Port thread 27 | Push In 12 x 1.5 |
| Port thread 3 | Integrated silencer |
| Product category | Device |
| Protection class | IP 6K9K / IP 6K8 |
| Rated current | 625 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Voltage | 12 V |
| GTIN | 04057885463556 |
| Size (mm x mm x mm) | 192.1 x 156.9 x 203.4 |
| UPC | 193133568247 |
| Weight (kg) | 3.931 |
| Weight (lb) | 8.666 |
