Description

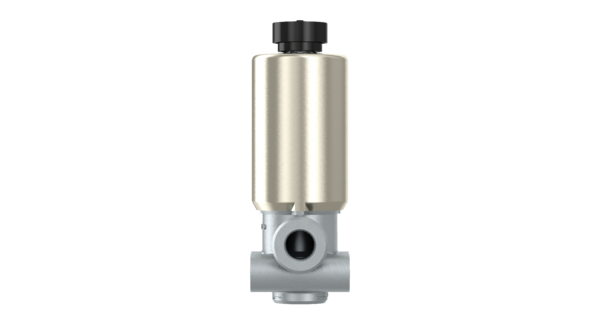

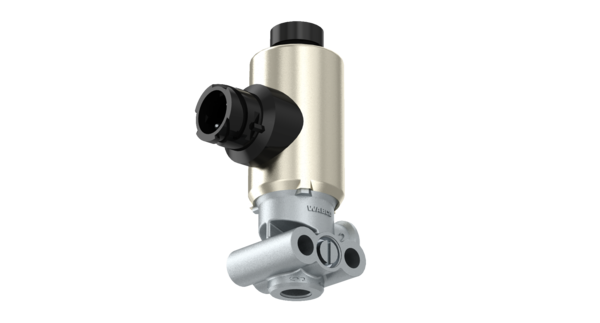

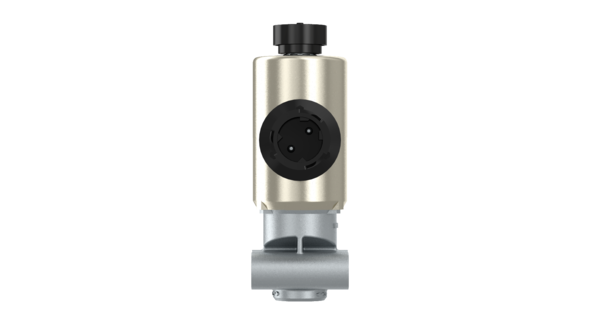

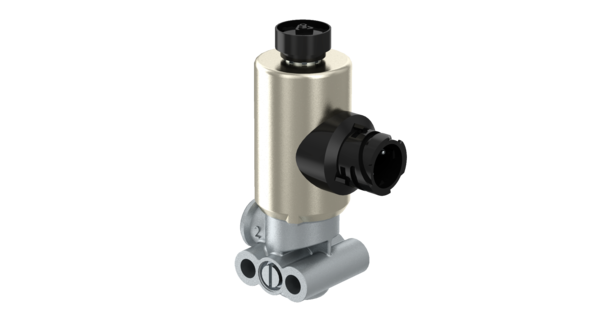

Solenoid Valve
Part Number: 4721706060
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.3164 |
| Electrical connection | Bayonet DIN 72 585 A1-2.1-Sn/K1 |
| Exhaust | 4.0 mm |
| Max. operating pressure | 13.0 bar |
| Multi nominal diameter (from port 1 to x) | 4 mm |
| Nominal diameter | 4.0 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
| Product category | Device |
| Protection class | IP 6K6, IP 6K9K |
| Rated current | 690 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Normally closed |
| Voltage | 24 V |
| GTIN | 7895851085978 |
| Size (mm x mm x mm) | 70 x 113 x 40 |
| UPC | 193133310983 |
| Weight (kg) | 0.537 |
| Weight (lb) | 1.1839 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAEWOO | 3453401310 |
| DAEWOO | P34534 01310 |
| DAF | 1527021 |
| DAF | 1402863 |
| DONGFENG (DFM) | 3754010-T0101 |
| FAUN | 99707005851 |
| FAW | 3754010D399 |
| FAW | S3754100Z70B |
| FAW | 3550511A242 |
| FORD | YC444K072AA |
| FOTON | 1417335629002 |
| FOTON | 1612035900003 |
| HUIZHONG | 39810-A8100 |
| HYUNDAI | 594307F000 |
| HYUNDAI | 59430 7F000 |
| HYUNDAI | 34534 01310 |
| IRISBUS | 41025616 |
| IRISBUS | 5010347977 |
| IVECO | 41025616 |
| IVECO | 4254347 |
| JAC | 59430-7F000 |
| JAC | W20709.02100.01W |
| KING LONG | 35K6351010 |
| KING LONG | 235600030 |
| KING LONG | 35K63-51010 |
| KRONE | 5058208130 |
| KRONE | 505820813 |
| LEYLAND DAF | ABRA097 |
| NEOPLAN | 11062023 |
| NISSAN | 464139X400 |
| OTOKAR | 13C4509108AA |
| PACCAR | 1402863 |
| SCANIA | 1470633 |
| SCANIA | 2089740 |
| SCHWARZMÜLLER | 83637 |
| SHAANXI | DZ9100580271 |
| SINOTRUK (CNHTC) | VG1557090015/1 |
| SINOTRUK (CNHTC) | VG15570900151 |
| SINOTRUK (CNHTC) | AZ87355000101 |
| SINOTRUK (CNHTC) | WG9719360130 |
| SOLARIS | 1102192000 |
| UD TRUCKS | 464139X400 |
| VAN HOOL | 10674242 |
| VDL | 20252302 |
| VDL | 252302 |
| YUTONG | 350600563 |
| YUTONG | 355000136 |
| YUTONG | 3506-00563 |
| YUTONG | 3550-00136 |
