Description

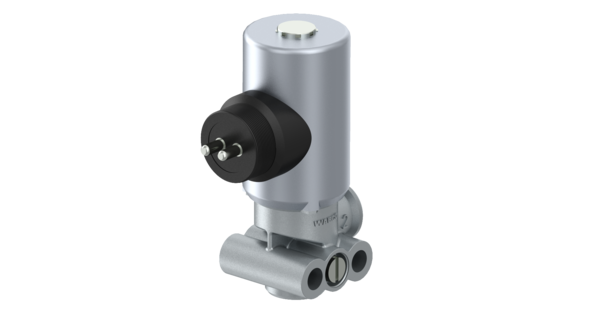

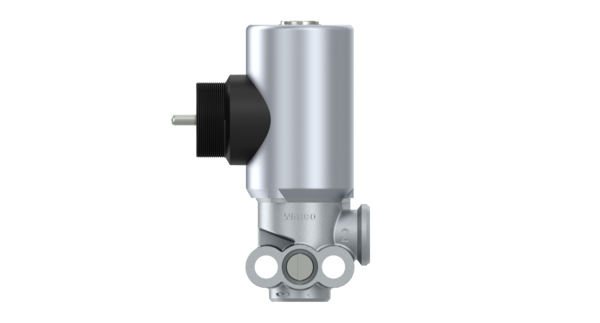

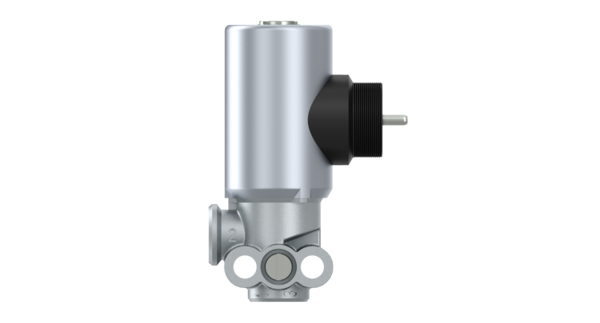

Solenoid Valve
Part Number: 4721745000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.268 |
| Electrical connection | M27 x 1 |
| Max. operating pressure | 13.0 bar |
| Multi nominal diameter (from port 1 to x) | 4 mm |
| Nominal diameter | 4.0 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
| Product category | Device |
| Protection class | IP 6K9K, IP 6K7 |
| Rated current | 690 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Normally closed |
| Voltage | 24 V |
| GTIN | 04057875218517 |
| Size (mm x mm x mm) | 65 x 103 x 40 |
| UPC | 193133311430 |
| Weight (kg) | 0.54 |
| Weight (lb) | 1.1905 |
OEM Cross References
| Brand | Reference No |
|---|---|
| IRISBUS | 504122079 |
| IVECO | 41016828 |
| IVECO | 504122079 |
| IVECO | 42126175 |
