Description

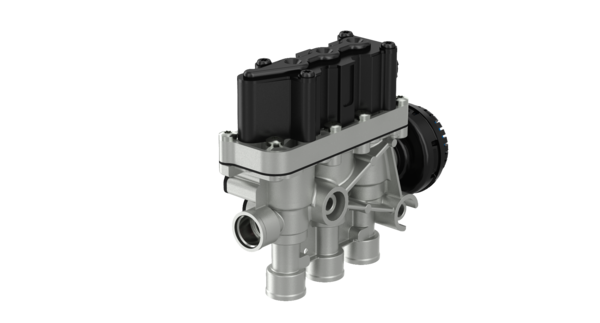

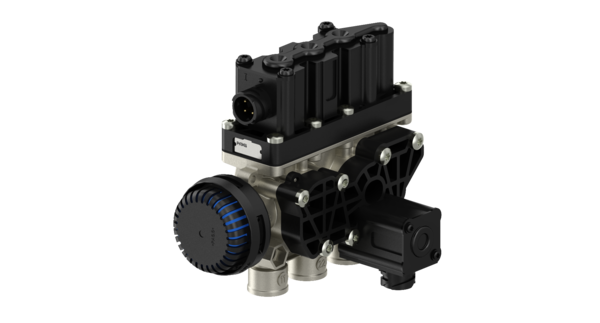

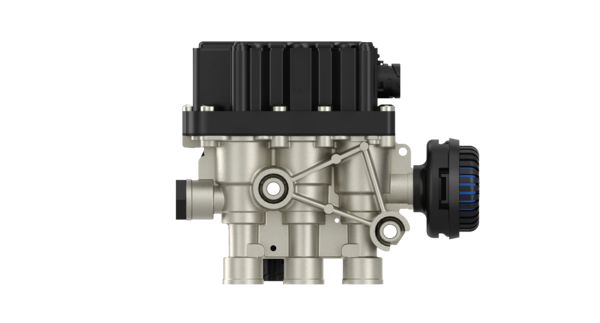

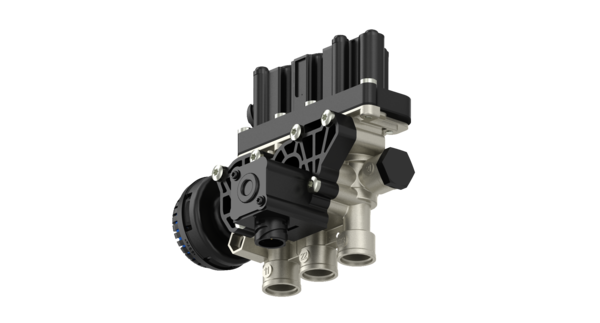

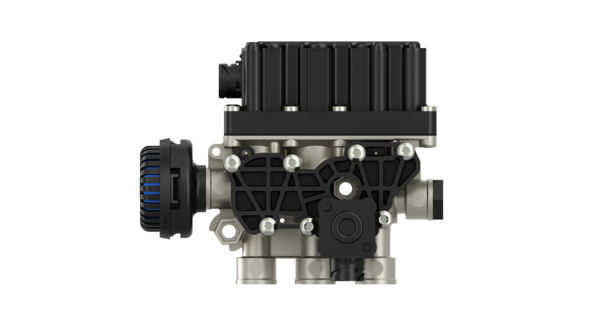

Solenoid Valve
Part Number: PRO4120060
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Application | Front axle in buses |
| Calculated Volume (dm³) | 4.003 |
| Comments | Kneeling function, Ventilation function integrated, Silencer on port 3 |
| Electrical connection | 1 Bayonet, DIN 72585-A1-3.6-Sn/K2, DIN 72585-A1-4.1-Sn/K2 |
| ProVia warranty | 1 year |
| Product category | Device |
| Technical specification | AM specification |
| GTIN | 04057877005696 |
| Size (mm x mm x mm) | 209 x 114 x 168 |
| UPC | 193134005246 |
| Weight (kg) | 2.66 |
| Weight (lb) | 5.864 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ALEXANDER DENNIS | 662174 |
| DAF | 1150130 |
| DAF | 1525422 |
| EVOBUS | A0003279725 |
| FOTON | 1618029600001 |
| IRIZAR | 8015529 |
| MAN | 2Z0601361F |
| MAN | 2Z0607361F |
| MERCEDES-BENZ | A0003279725 |
| SHAANXI | 6180J3629112 |
| SHAANXI | 6180J-3629112 |
| VDL | 41150130 |
| VDL | 759000174 |
| VW | 2Z0601361G |
| YUTONG | 350601316 |
| YUTONG | 3506-01316 |
