Description

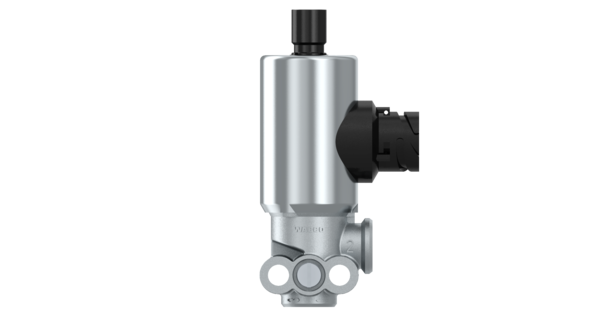

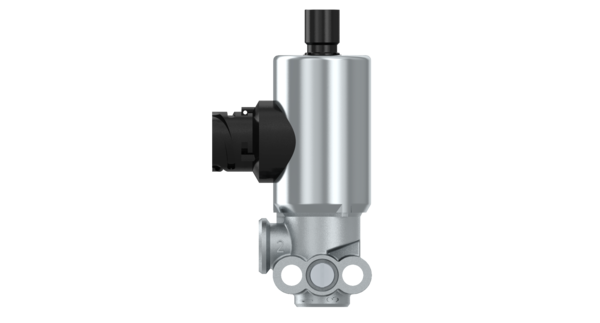

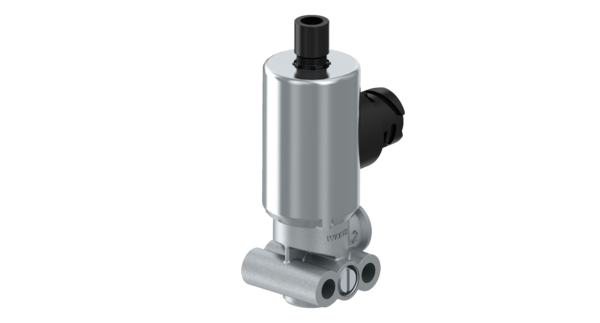

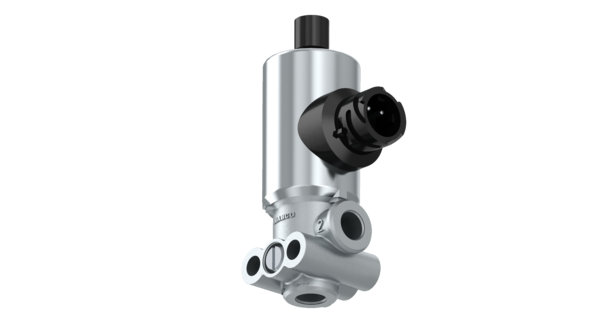

Solenoid Valve
Part Number: 4721714280
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.29264 |
| Electrical connection | Bayonet DIN 72 585 A1-3.2-Sn/K1 |
| Exhaust | 2.2 mm |
| Max. operating pressure | 16.0 bar |
| Multi nominal diameter (from port 1 to x) | 2.2 mm |
| Nominal diameter | 2.2 mm |
| Port thread 1 | M10 x 1 |
| Port thread 2 | M12 x 1.5 |
| Port thread 3 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
| Product category | Device |
| Protection class | IP 6K9K, IP 6K7 |
| Rated current | 410 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Normally open |
| Voltage | 24 V |
| GTIN | 04057875218241 |
| Size (mm x mm x mm) | 118 x 62 x 40 |
| UPC | 193133311041 |
| Weight (kg) | 0.538 |
| Weight (lb) | 1.1861 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1524867 |
| MAN | 81521606114 |
| MAN | 81521606119 |
| MAN | 81521606123 |
| MAN | 81521609119 |
| MAN | 33749206001 |
| MAN | 33749206002 |
| NEOPLAN | 81521606114 |
| SCANIA | 1934959 |
