Description

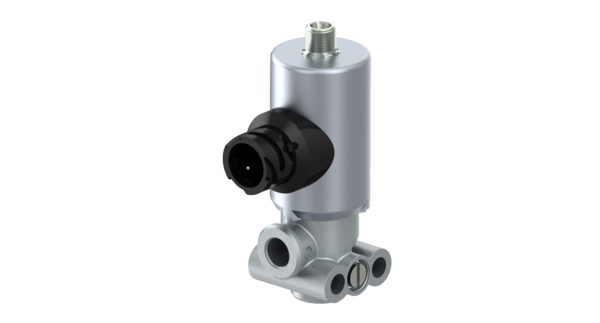

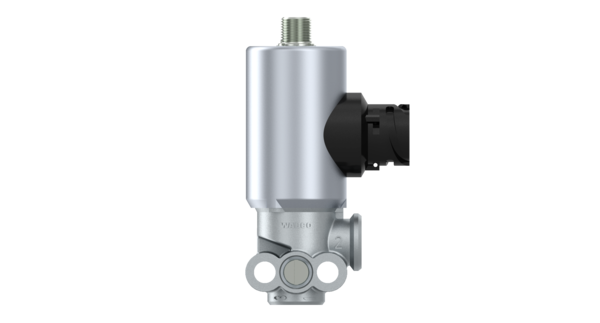

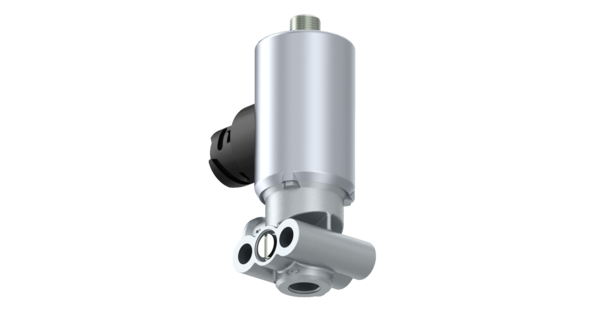

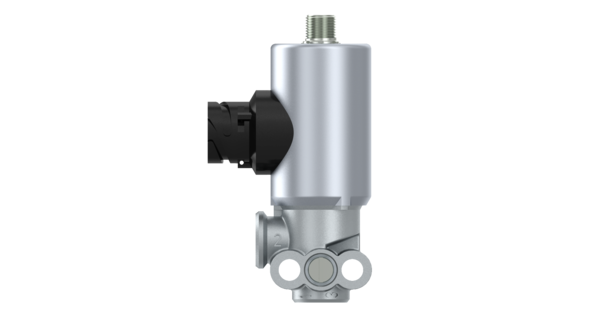

Solenoid Valve
Part Number: 4721727260
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.28416 |
| Electrical connection | Bayonet DIN 72 585 A1-2.1-Sn/K1 |
| Exhaust | 2.2 mm |
| Max. operating pressure | 12.5 bar |
| Multi nominal diameter (from port 1 to x) | 2.2 mm |
| Nominal diameter | 2.2 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Port thread 3 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
| Product category | Device |
| Protection class | IP 6K9K, IP 6K7 |
| Rated current | 410 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Normally closed |
| Voltage | 24 V |
| GTIN | 04057875218395 |
| Size (mm x mm x mm) | 64 x 111 x 40 |
| UPC | 193133310303 |
| Weight (kg) | 0.536 |
| Weight (lb) | 1.1817 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1315509 |
| DAF | 1197581 |
| DAF | 1330025 |
| LIEBHERR | 11160838 |
| MERCEDES-BENZ | A0059970009 |
| MERCEDES-BENZ | 0059970009 |
| MERCEDES-BENZ | 533531907010 |
| SCANIA | 1934968 |
| STEYR | 533531907010 |
| VDL | 1196420 |
