Description

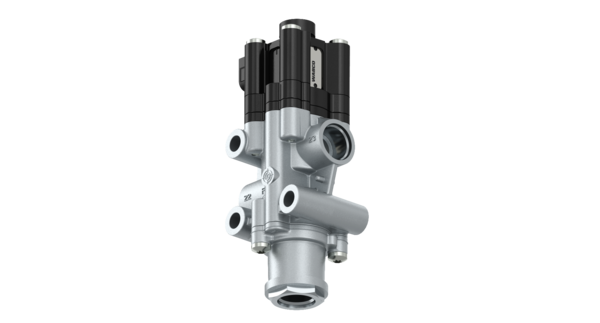

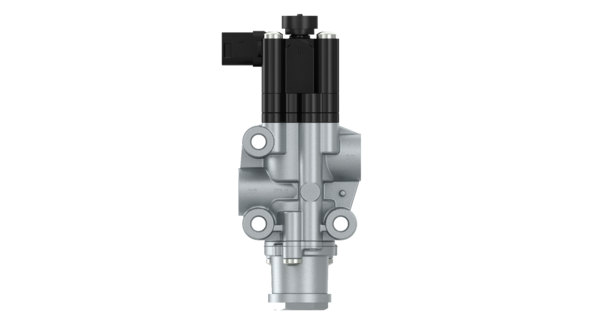

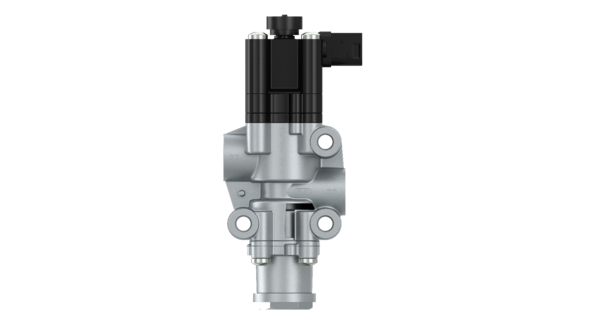

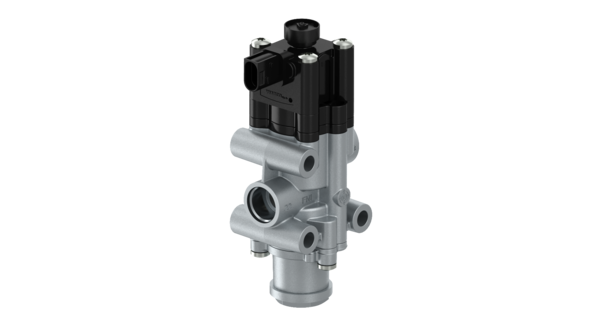

Solenoid Valve
Part Number: 4728900810
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.9129 |
| Cooling | Air |
| Electrical connection | Tyco HDSCS 2 x 2.8 coding A |
| Max. operating pressure | 20.0 bar |
| Mounting | 3 x M8 |
| Multi nominal diameter (from port 1 to x) | 11.3 mm |
| Port thread 11 | M22 x 1.5 JED – 388-4 |
| Port thread 22 | M22 x 1.5 JED – 388-4 |
| Port thread 23 | M22 x 1.5 JED – 388-4 |
| Product category | Device |
| Protection class | IP 6K9K |
| Rated current | 240 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 24 V |
| GTIN | 04057885951008 |
| Packaging size (mm x mm x mm) | 85 x 60 x 171 |
| Size (mm x mm x mm) | 85 x 180.5 x 59.5 |
| UPC | 193133533504 |
| Weight | 0.666 |
| Weight (kg) | 0.666 |
| Weight (lb) | 1.468 |
OEM Cross References
| Brand | Reference No |
|---|---|
| SCANIA | 2158373 |
