Description

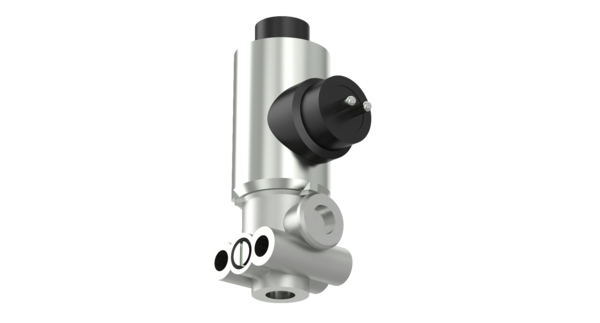

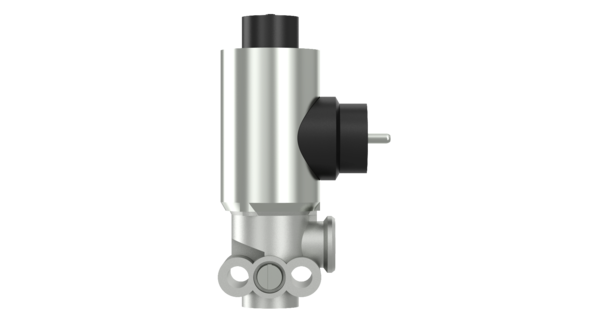

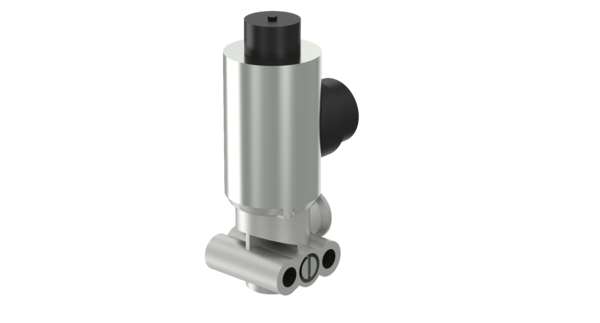

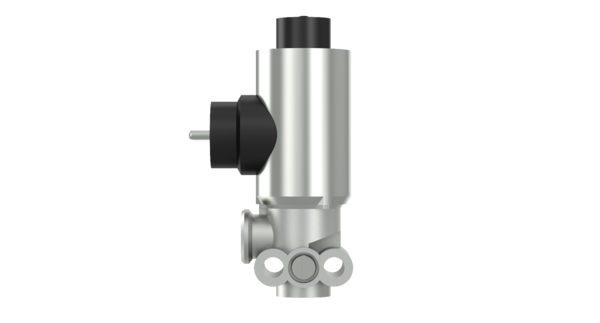

Solenoid Valve
Part Number: 4721726200
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.2852 |
| Electrical connection | M27 x 1 |
| Exhaust | 3.0 mm |
| Max. operating pressure | 12.5 bar |
| Multi nominal diameter (from port 1 to x) | 2.2 mm |
| Nominal diameter | 2.2 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
| Product category | Device |
| Protection class | IP 6K6, IP 6K9K |
| Rated current | 410 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Normally closed |
| Voltage | 24 V |
| GTIN | 7895851061842 |
| Size (mm x mm x mm) | 115 x 62 x 40 |
| UPC | 193133310297 |
| Weight (kg) | 0.54 |
| Weight (lb) | 1.1905 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1517494 |
| DAF | 1518101 |
| EVOBUS | A0039971436 |
| KOMATSU | 65438740 |
| LIEBHERR | 502659608 |
| LIEBHERR | 502983314 |
| LIEBHERR | 502983308 |
| LIEBHERR | 502983377 |
| MAN | 81521606072 |
| MAN | 81991641803 |
| MERCEDES-BENZ | 0009970812 |
| MERCEDES-BENZ | A0009970812 |
| MERCEDES-BENZ | 0039971436 |
| MERCEDES-BENZ | A0039971436 |
| NEOPLAN | 11047717 |
| NEOPLAN | 240612600 |
| NEOPLAN | 1102526543718 |
| RENAULT | 5000815631 |
| RENAULT | 5000806058 |
| SCANIA | 1934965 |
| STEYR | 79100710041 |
| TEREX | 65438740 |
