Description

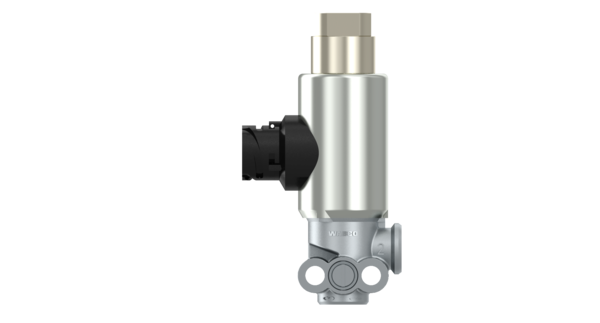

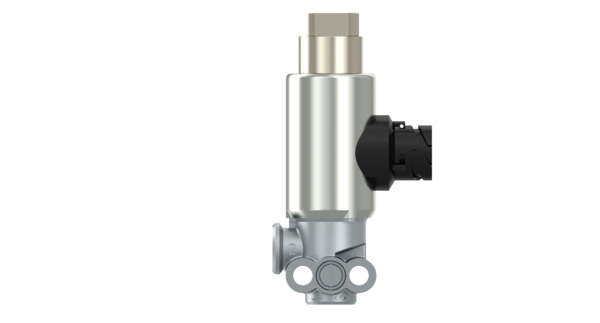

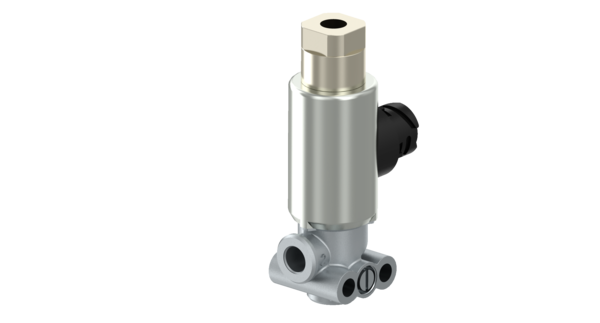

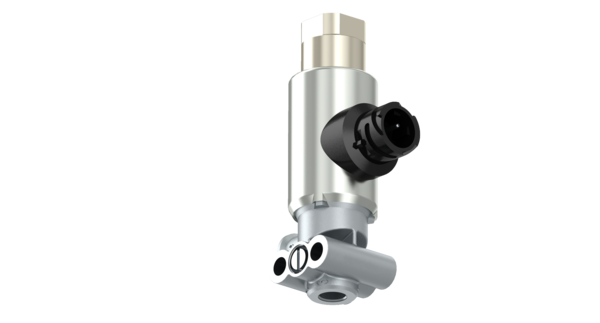

Solenoid Valve
Part Number: 4721709960
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.3556 |
| Cooling | Air |
| Electrical connection | Bayonet |
| Exhaust | 4.0 mm |
| Max. operating pressure | 13.0 bar |
| Multi nominal diameter (from port 1 to x) | 4 mm |
| Nominal diameter | 4.0 mm |
| Port thread 1 | 1/4″ – 18 NPT |
| Port thread 2 | 1/4″ – 18 NPT |
| Port thread 3 | 1/4″ – 18 NPT |
| Product category | Device |
| Protection class | IP 6K9K, IP 6K7 |
| Rated current | 690 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Normally closed |
| Voltage | 24 V |
| GTIN | 04057875218210 |
| Size (mm x mm x mm) | 127 x 70 x 40 |
| UPC | 193133443148 |
| Weight (kg) | 0.634 |
| Weight (lb) | 1.3977 |
OEM Cross References
| Brand | Reference No |
|---|---|
| KENWORTH | S472-170-996-0 |
| MACK | 6300-4721709960 |
| MERITOR | S4721709960 |
| PETERBILT | S472-170-996-0 |
| VAN HOOL | 10876925 |
| VOLVO | WAB4721709960 |
