Description

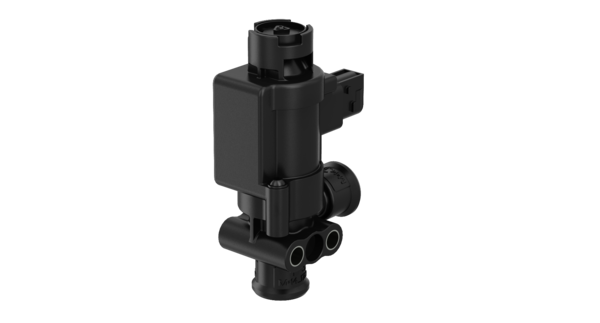

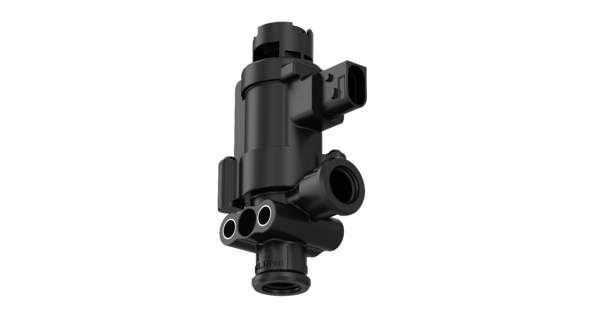

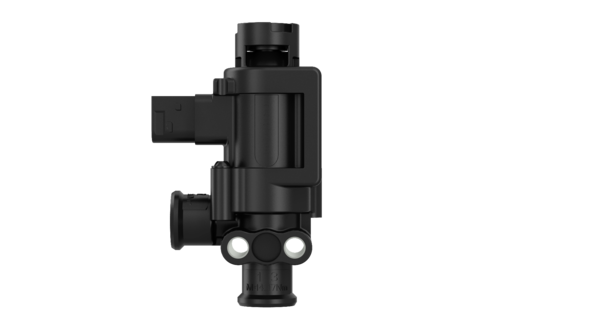

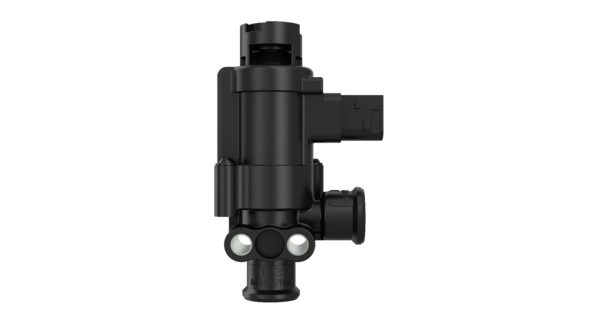

Solenoid Valve
Part Number: 4721720010
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.35916 |
| Electrical connection | Tyco HDSCS Cod. A C-114-18743 (INDEX C) |
| Exhaust | 2.2 mm |
| Max. operating pressure | 13.0 bar |
| Multi nominal diameter (from port 1 to x) | 2.2 mm |
| Nominal diameter | 2.2 mm |
| Port thread 1 | V16 x 1.5 JED 388 |
| Port thread 2 | V16 x 1.5 JED – 388 |
| Product category | Device |
| Protection class | IP 6K6K, IP 6K9K |
| Rated current | 590 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Normally closed |
| Voltage | 24 V |
| GTIN | 7895851077805 |
| Size (mm x mm x mm) | 123 x 73 x 40 |
| UPC | 193133311096 |
| Weight (kg) | 0.359 |
| Weight (lb) | 0.79146 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | A0009973812 |
| LEYLAND DAF | EXABRF385 |
| MERCEDES-BENZ | A0009973812 |
