Description

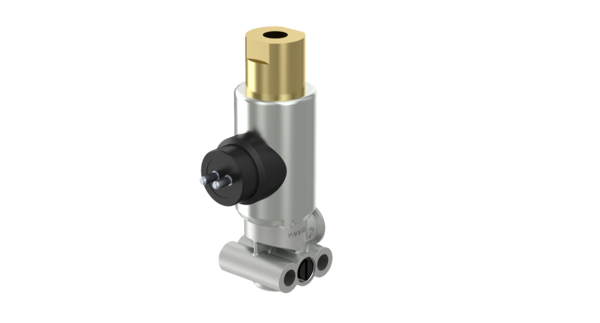

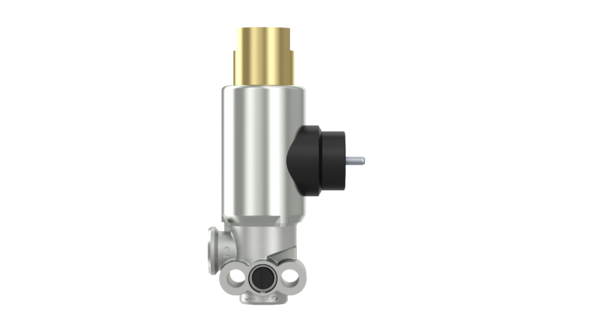

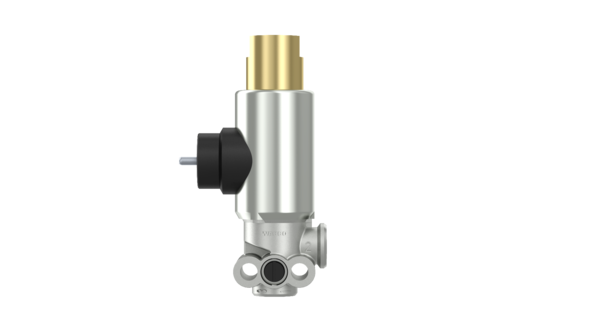

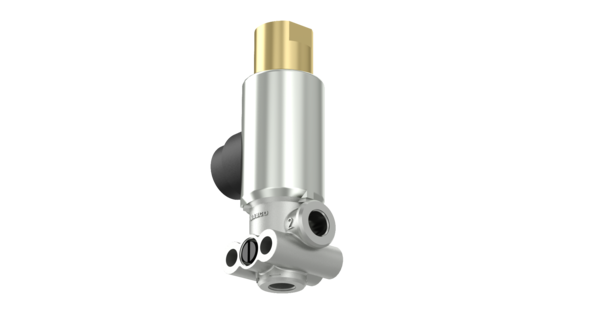

Solenoid Valve
Part Number: 4721709910
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.41396 |
| Cooling | Air |
| Electrical connection | M27 x 1 |
| Exhaust | 4.0 mm |
| Max. operating pressure | 13.0 bar |
| Multi nominal diameter (from port 1 to x) | 4 mm |
| Nominal diameter | 4.0 mm |
| Port thread 1 | 1/4″ – 18 NPT |
| Port thread 2 | 1/4″ – 18 NPT |
| Port thread 3 | 1/4″ – 18 NPT |
| Product category | Device |
| Protection class | IP 6K9K, IP 6K7 |
| Rated current | 1410 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Normally closed |
| Voltage | 12 V |
| GTIN | 04057875218203 |
| Size (mm x mm x mm) | 79 x 131 x 40 |
| UPC | 193133311010 |
| Weight (kg) | 0.647 |
| Weight (lb) | 1.4264 |
