Description

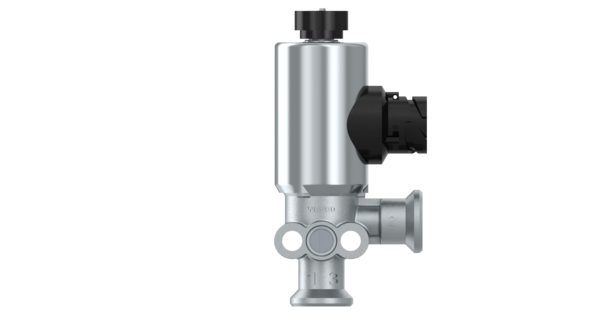

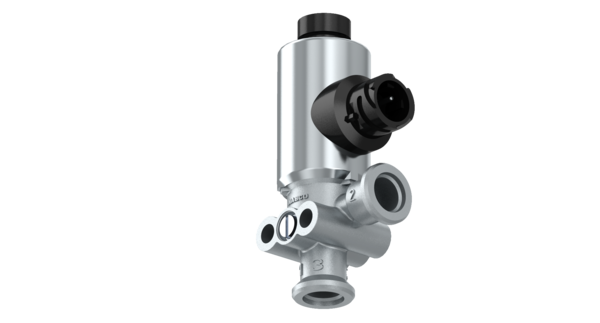

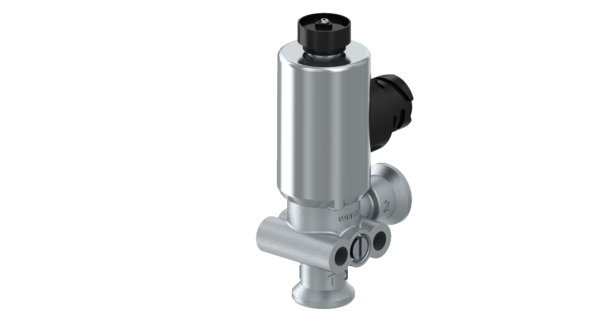

Solenoid Valve
Part Number: 4721706370
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.304 |
| Cooling | Air |
| Electrical connection | Bayonet DIN 72 585 A1-2.1-Sn/K2 |
| Exhaust | 4.0 mm |
| Max. operating pressure | 13.0 bar |
| Multi nominal diameter (from port 1 to x) | 4 mm |
| Nominal diameter | 4.0 mm |
| Port thread 1 | M16 x 1.5 JED 388 |
| Port thread 2 | M16 x 1.5 JED – 388 |
| Product category | Device |
| Protection class | IP 6K6, IP 6K9K |
| Rated current | 1410 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Normally closed |
| Voltage | 12 V |
| GTIN | 04057875218081 |
| Size (mm x mm x mm) | 122 x 40 x 62.3 |
| UPC | 193133443032 |
| Weight (kg) | 0.56 |
| Weight (lb) | 1.235 |
OEM Cross References
| Brand | Reference No |
|---|---|
| FREIGHTLINER | TDAS4721706370 |
| KENWORTH | S472-170-637-0 |
| MACK | S4721706370 |
| MACK | 6300-4721706370 |
| MERCEDES-BENZ | A0009970312 |
| MERCEDES-BENZ | 0009970312 |
| MERITOR | S4721706370 |
| PETERBILT | S472-170-637-0 |
| VOLVO | TDAS4721706370 |
| VOLVO | WAB4721706370 |
