Description

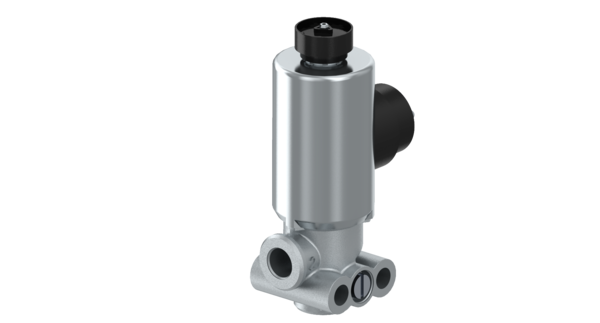

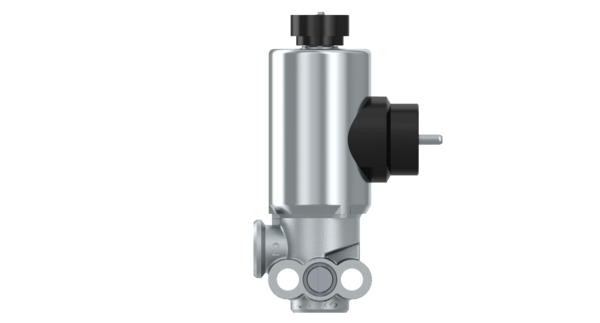

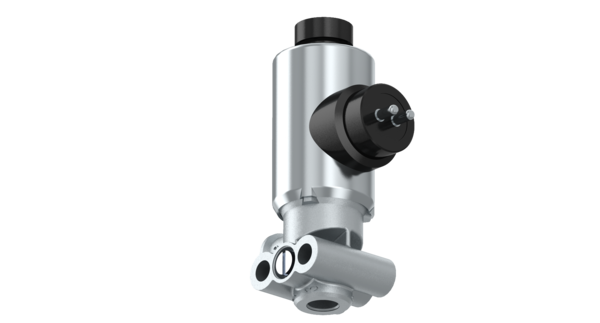

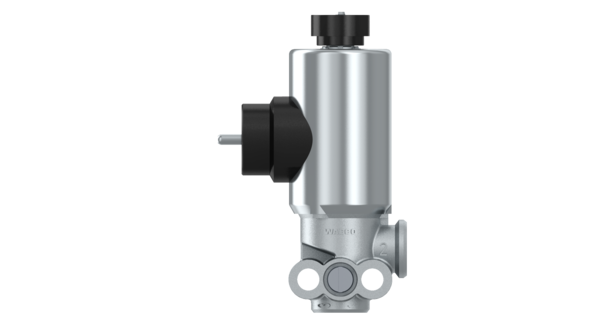

Solenoid Valve
Part Number: 4721706010
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.271 |
| Cooling | Air |
| Electrical connection | M27 x 1 |
| Exhaust | 4.0 mm |
| Max. operating pressure | 13.0 bar |
| Multi nominal diameter (from port 1 to x) | 4 mm |
| Nominal diameter | 4.0 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Product category | Device |
| Protection class | IP 6K6, IP 6K9K |
| Rated current | 1410 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Normally closed |
| Voltage | 12 V |
| GTIN | 04057875218036 |
| Size (mm x mm x mm) | 113 x 60 x 40 |
| UPC | 193133310082 |
| Weight (kg) | 0.542 |
| Weight (lb) | 1.1949 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1518905 |
| MERCEDES-BENZ | A0059975136 |
| MERCEDES-BENZ | 0059975136 |
| NISSAN | 464135890A |
| UD TRUCKS | 464135890A |
