Description

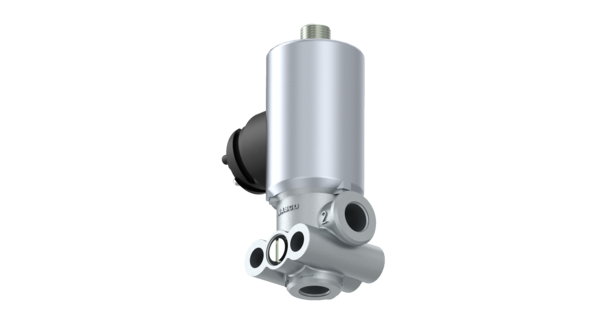

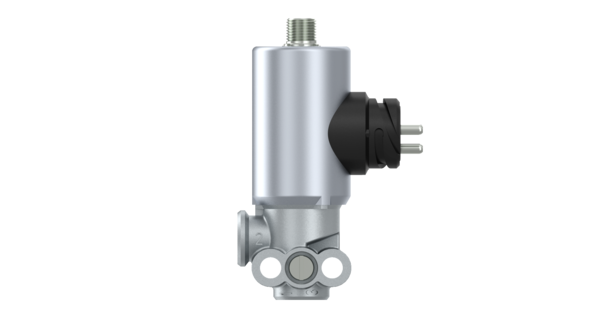

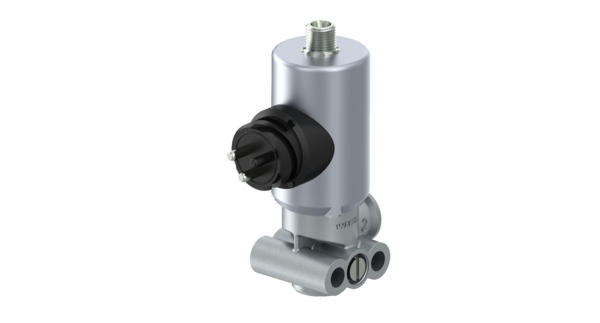

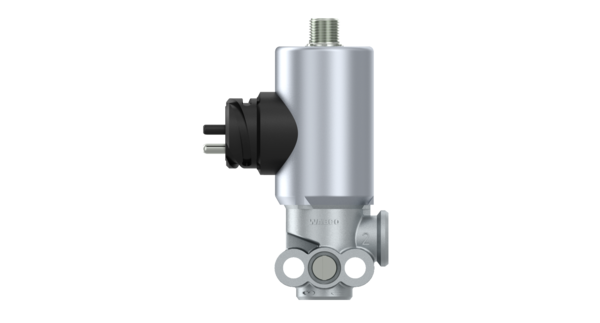

Solenoid Valve
Part Number: 4721717040
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.31968 |
| Electrical connection | Bayonet |
| Exhaust | 2.2 mm |
| Max. operating pressure | 16.0 bar |
| Multi nominal diameter (from port 1 to x) | 2.2 mm |
| Nominal diameter | 2.2 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Port thread 3 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
| Product category | Device |
| Protection class | IP 6K9K, IP 6K7 |
| Rated current | 410 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Normally open |
| Voltage | 24 V |
| GTIN | 04057875218258 |
| Size (mm x mm x mm) | 74 x 108 x 40 |
| UPC | 193133311027 |
| Weight (kg) | 0.541 |
| Weight (lb) | 1.1927 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ALEXANDER DENNIS | 656607 |
| ALEXANDER DENNIS | AB4721717040 |
| DAF | 1285547 |
| DAF | 0091647 |
| DAF | 91647 |
| SCANIA | 1934961 |
| VDL | 41285547 |
| VDL | 1285547 |
