Description

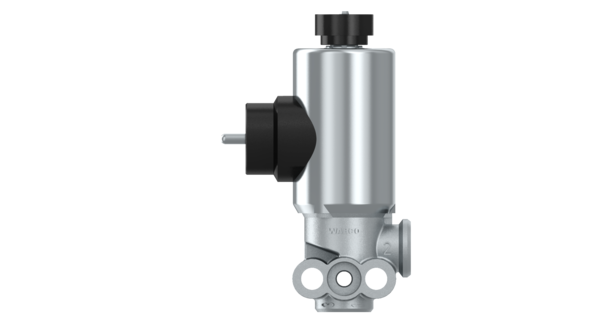

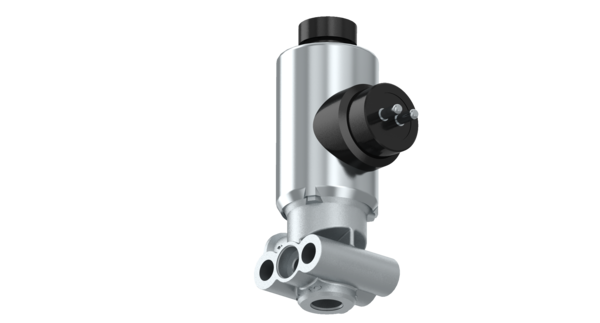

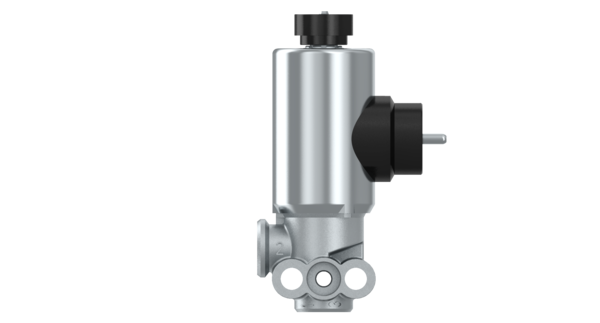

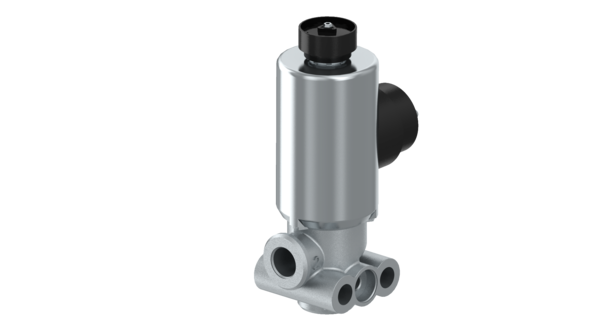

Solenoid Valve
Part Number: 4720706000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.33288 |
| Cooling | Air |
| Electrical connection | M27 x 1 |
| Exhaust | 4.0 mm |
| Max. operating pressure | 13.0 bar |
| Multi nominal diameter (from port 1 to x) | 4 mm |
| Nominal diameter | 4.0 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Product category | Device |
| Protection class | IP 6K6, IP 6K9K |
| Rated current | 690 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Normally closed |
| Voltage | 24 V |
| GTIN | 04057875217640 |
| Size (mm x mm x mm) | 114 x 73 x 40 |
| UPC | 193133310075 |
| Weight (kg) | 0.534 |
| Weight (lb) | 1.1773 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | A0049979136 |
| EVOBUS | A0049974936 |
| MERCEDES-BENZ | 0049979136 |
| MERCEDES-BENZ | A0049979136 |
| MERCEDES-BENZ | 0049974936 |
| MERCEDES-BENZ | A0049974936 |
