Description

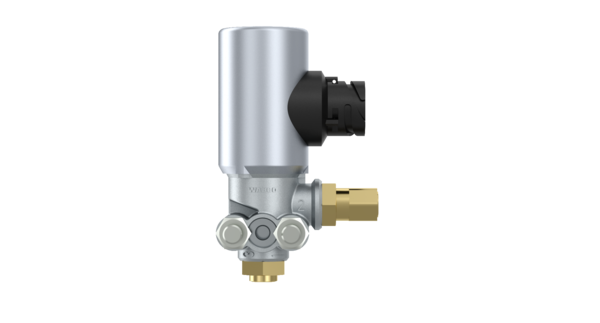

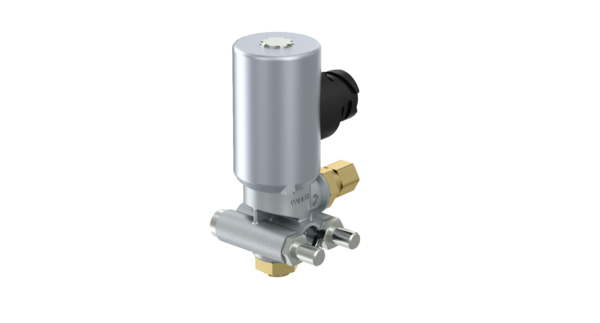

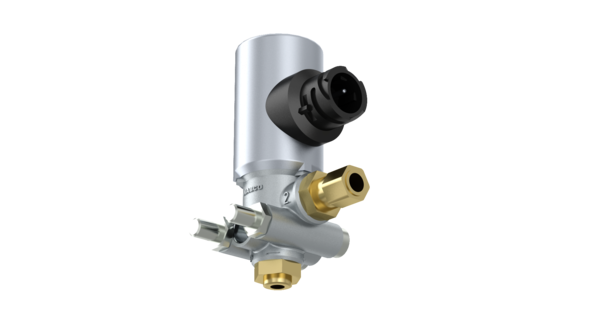

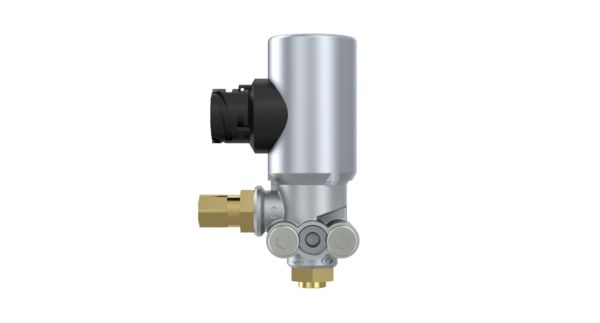

Solenoid Valve
Part Number: 4721745970
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.44064 |
| Cooling | Air |
| Electrical connection | Bayonet DIN 72 585 A1-2.1-Sn/K1 |
| Max. operating pressure | 17.0 bar |
| Multi nominal diameter (from port 1 to x) | 3.7 mm |
| Nominal diameter | 3.7 mm |
| Port thread 1 | VOSS 8 x 1 |
| Port thread 2 | Voss 6 x 1 |
| Product category | Device |
| Protection class | IP 6K9K, IP 6K7 |
| Rated current | 1600 mA |
| Technical specification | OE specification |
| Temperature range | -30°C to +65°C |
| Type | Normally closed |
| Voltage | 12 V |
| GTIN | 04057875218661 |
| Size (mm x mm x mm) | 108 x 68 x 60 |
| UPC | 193133311454 |
| Weight (kg) | 0.59 |
| Weight (lb) | 1.30073 |
OEM Cross References
| Brand | Reference No |
|---|---|
| IVECO | 42568327 |
| VDL | 30028342 |
