Description

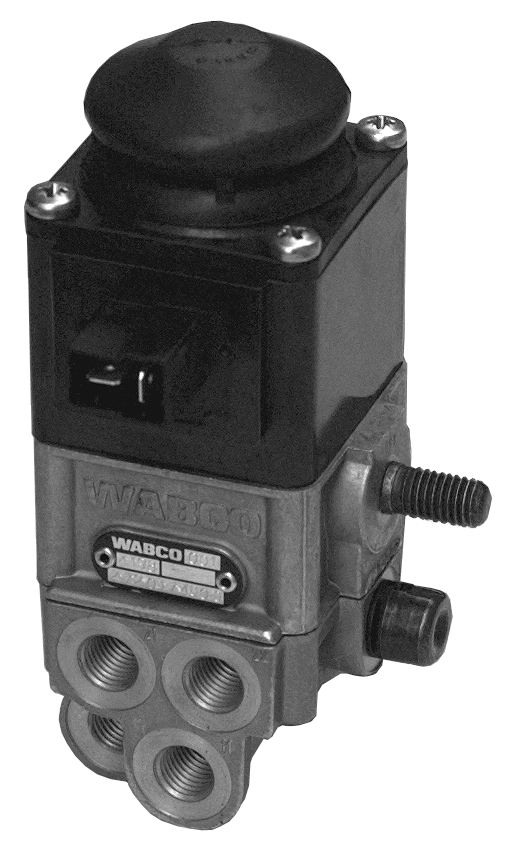

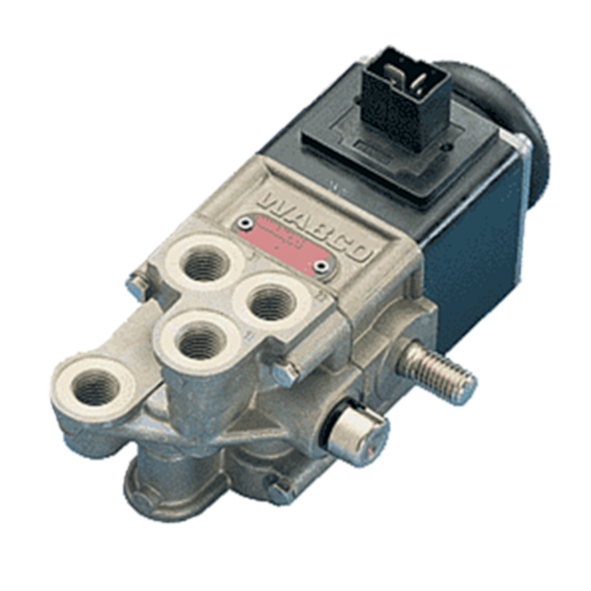

Solenoid Valve
Part Number: 4720174800
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.99666 |
| Electrical connection | 6.3 DIN 46 247 |
| Max. operating pressure | 8.0 bar |
| Nominal diameter | 3.0 mm |
| Port thread 11 | M12 x 1.5 |
| Port thread 12 | M12 x 1.5 |
| Port thread 21 | M12 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 23 | M12 x 1.5 |
| Port thread 24 | M12 x 1.5 |
| Port thread 3 | Ø 3 mm |
| Port thread 5 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
| Product category | Device |
| Protection class | IP 66 |
| Rated current | 2100 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Normally Open |
| Voltage | 24 V |
| GTIN | 7895851007147 |
| Size (mm x mm x mm) | 158 x 83 x 76 |
| UPC | 193133442943 |
| Weight (kg) | 1.016 |
| Weight (lb) | 2.2399 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1506132 |
| EVOBUS | 8633101000 |
| EVOBUS | A0007600378 |
| EVOBUS | A00076325520080 |
| EVOBUS | A000763255280 |
| FREIGHTLINER | TDAS4720174800 |
| IRISBUS | 4751117 |
| IVECO | 04751117 |
| IVECO | 42313618 |
| IVECO | 42323618 |
| IVECO | 4751117 |
| IVECO | 42542323 |
| KENWORTH | S472-017-480-0 |
| KÄSSBOHRER | 86331010000 |
| MACK | 6300-4720174800 |
| MAN | 81749206017 |
| MAN | 81521706140 |
| MERCEDES-BENZ | 0007600378 |
| MERCEDES-BENZ | A0007600378 |
| MERCEDES-BENZ | 0007632552 |
| MERCEDES-BENZ | 00076325520080 |
| MERCEDES-BENZ | 000763255280 |
| MERCEDES-BENZ | A00076325520080 |
| MERITOR | S4720174800 |
| NEOPLAN | 240612400 |
| NEOPLAN | 11047741 |
| NEOPLAN | 24061230099 |
| NEOPLAN | 81749206017 |
| OTOKAR | 14C0156483AA |
| PETERBILT | S472-017-480-0 |
| SCHMITZ CARGOBULL | 86331010000 |
| SOLARIS | 2401252000 |
| SOLARIS | 2406124000 |
| VDL | 20190257 |
| VDL | 190257 |
| VOLVO | TDAS4720174800 |
| VOLVO | WAB4720174800 |
| YUTONG | 350602749 |
