Description

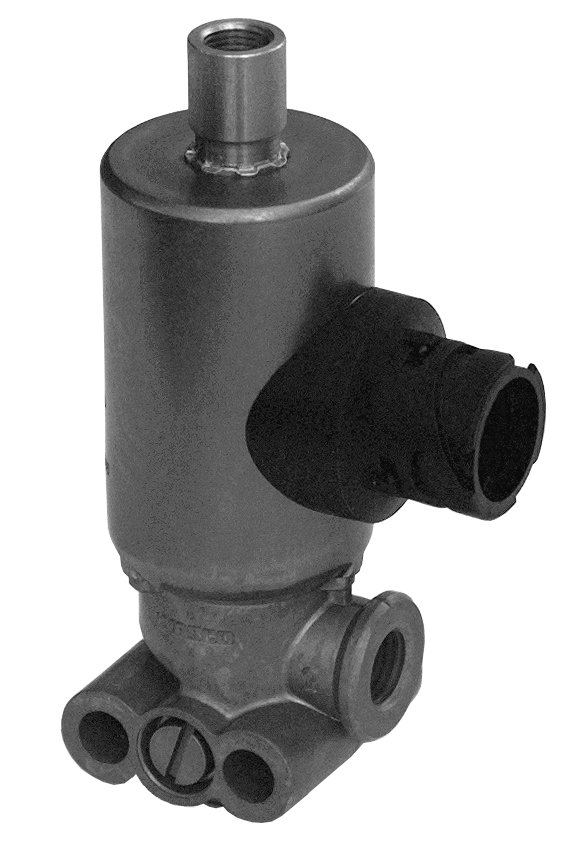

Solenoid Valve
Part Number: 4721754240
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.356 |
| Electrical connection | Bayonet |
| Max. operating pressure | 16.0 bar |
| Multi nominal diameter (from port 1 to x) | 4 mm |
| Nominal diameter | 4.0 mm |
| Port thread 1 | M10 x 1 |
| Port thread 2 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
| Product category | Device |
| Protection class | IP 6K9K, IP 6K7 |
| Rated current | 690 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Normally open |
| Voltage | 24 V |
| GTIN | 04057875218678 |
| Size (mm x mm x mm) | 70 x 40 x 127 |
| UPC | 193133311485 |
| Weight (kg) | 0.567 |
| Weight (lb) | 1.25 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1305840 |
| DAF | 130584 |
| DAF | 1330004 |
