Description

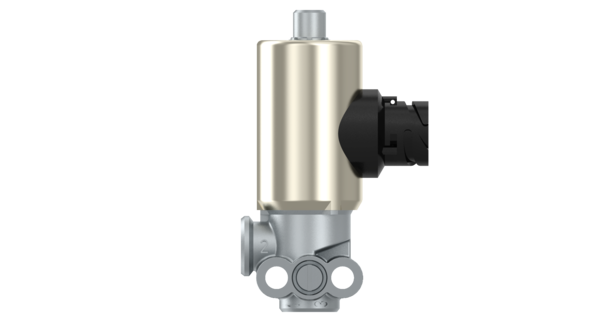

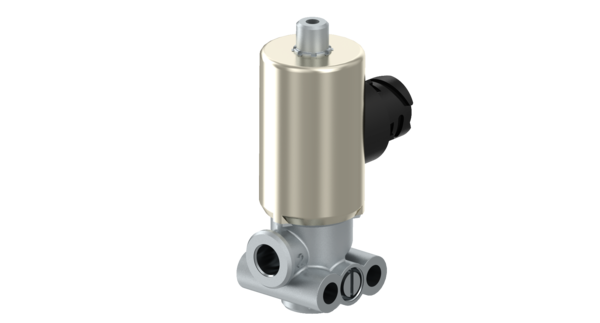

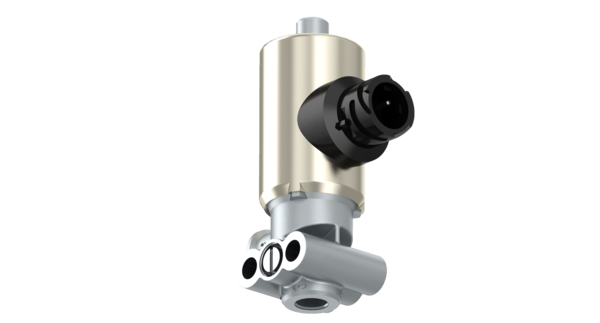

Solenoid Valve 3/2
Part Number: 4721708670
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.3249 |
| Cooling | Air |
| Electrical connection | Bayonet DIN 72 585 A1-2.1-Sn/K1 |
| Exhaust | 4.0 mm |
| Max. operating pressure | 13.0 bar |
| Multi nominal diameter (from port 1 to x) | 4 mm |
| Nominal diameter | 4.0 mm |
| Port thread 1 | 1/4″ – 18 NPT |
| Port thread 2 | 1/4″ – 18 NPT |
| Port thread 3 | 1/8″ – 27 NPT |
| Product category | Device |
| Protection class | IP 6K9K, IP 6K7 |
| Rated current | 1410 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Normally closed |
| Voltage | 12 V |
| GTIN | 04057875218166 |
| Size (mm x mm x mm) | 114 x 75 x 38 |
| UPC | 193133443100 |
| Weight (kg) | 0.537 |
| Weight (lb) | 1.1839 |
OEM Cross References
| Brand | Reference No |
|---|---|
| FREIGHTLINER | TDAS4721708670 |
| INTERNATIONAL | 3567224C1 |
| KENWORTH | S472-170-867-0 |
| MACK | S4721708670 |
| MACK | 6300-4721708670 |
| MERITOR | S4721708670 |
| PETERBILT | S472-170-867-0 |
| VOLVO | TDAS4721708670 |
| VOLVO | WAB4721708670 |
