Description

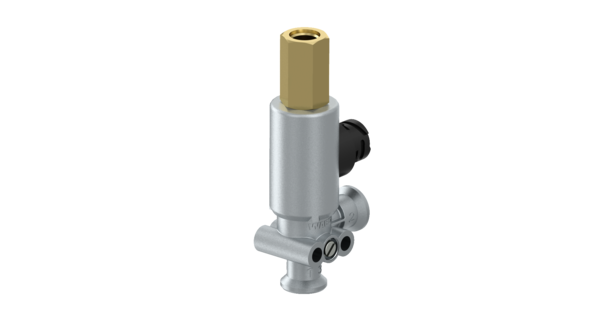

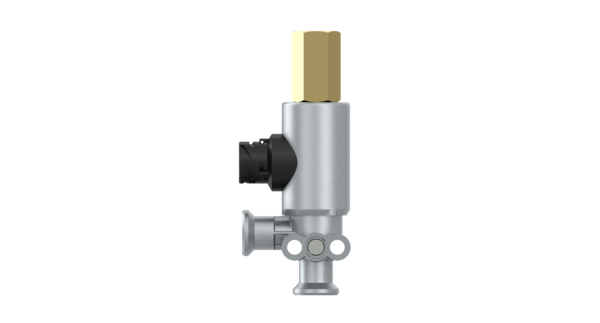

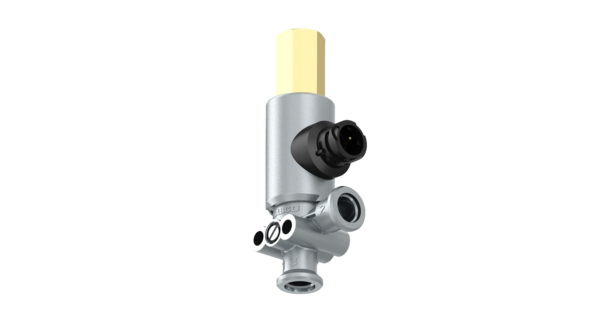

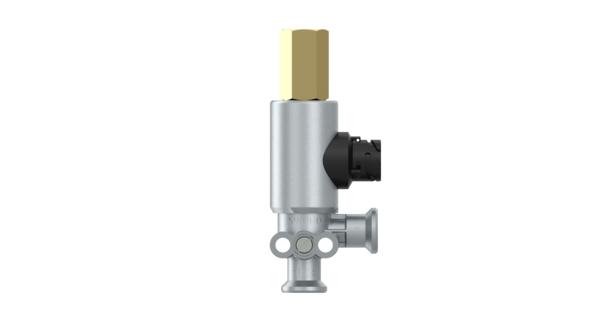

Solenoid Valve
Part Number: 4721713360
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.3725 |
| Electrical connection | Bayonet DIN 72 585 A1-2.1-Sn/K2 |
| Exhaust | 2.2 mm |
| Max. operating pressure | 13.0 bar |
| Multi nominal diameter (from port 1 to x) | 2.2 mm |
| Nominal diameter | 2.2 mm |
| Port thread 1 | M16 x 1.5 JED 388 |
| Port thread 2 | M16 x 1.5 JED – 388 |
| Port thread 3 | M16 x 1.5 JED 388 |
| Port threads | M16 x 1.5 |
| Product category | Device |
| Protection class | IP 6K9K, IP 6K7 |
| Rated current | 410 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Normally open |
| Voltage | 24 V |
| GTIN | 04057875218272 |
| Size (mm x mm x mm) | 62.5 x 40 x 149 |
| UPC | 193133311034 |
| Weight (kg) | 0.5 |
| Weight (lb) | 1.1023 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | A0059970436 |
| MERCEDES-BENZ | 0059970436 |
| MERCEDES-BENZ | A0059970436 |
| SCANIA | 2089744 |
