Description

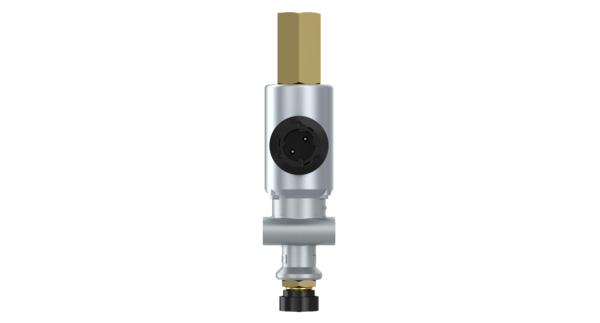

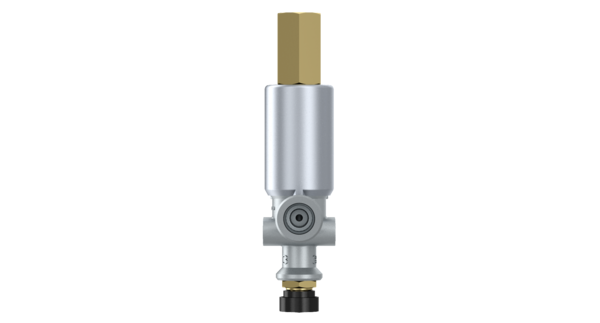

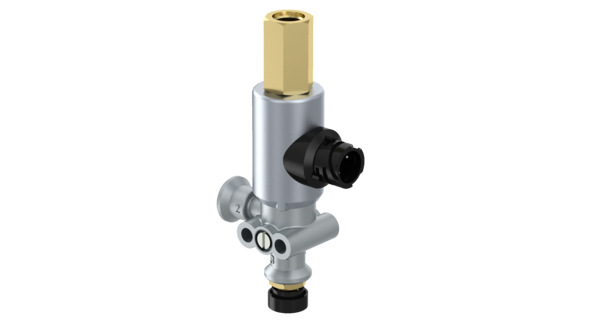

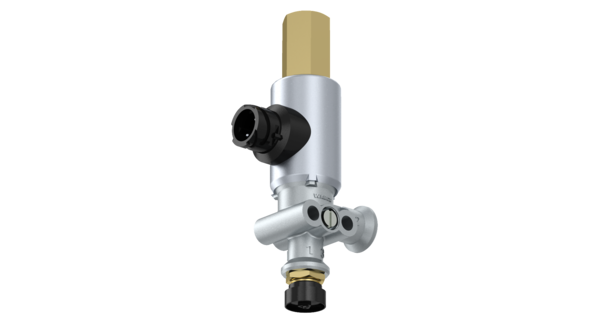

Solenoid Valve
Part Number: 4721763160
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.51102 |
| Electrical connection | Bayonet DIN 72 585 A1-2.1-Sn/K2 |
| Exhaust | 4.0 mm |
| Max. operating pressure | 13.0 bar |
| Multi nominal diameter (from port 1 to x) | 4 mm |
| Nominal diameter | 4.0 mm |
| Port thread 1 | M16 x 1.5 JED 388 |
| Port thread 2 | M16 x 1.5 JED – 388 |
| Port threads | M16 x 1.5 |
| Product category | Device |
| Protection class | IP 6K9K, IP 6K7 |
| Rated current | 690 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Normally open |
| Voltage | 24 V |
| GTIN | 7895851085954 |
| Size (mm x mm x mm) | 41 x 164 x 76 |
| UPC | 193133311508 |
| Weight (kg) | 0.701 |
| Weight (lb) | 1.5454 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1385440 |
| EVOBUS | A0049978236 |
| HINO | 44510E0170 |
| IRISBUS | 5006143407 |
| ISUZU | 1482403450 |
| IVECO | 5006143407 |
| LEYLAND DAF | 1385440 |
| MAN | 81521806020 |
| MAN | 81521206020 |
| MERCEDES-BENZ | 0049978236 |
| MERCEDES-BENZ | A0049978236 |
| MERCEDES-BENZ | A0049978238 |
| NEOPLAN | 81521806020 |
