Description

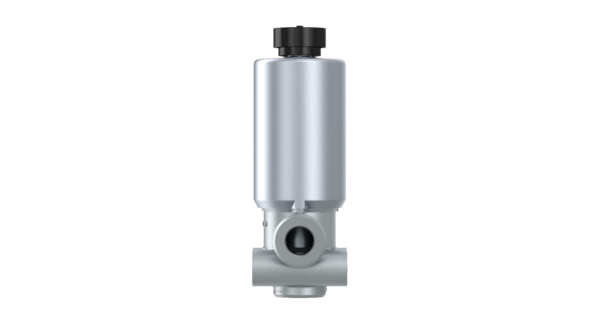

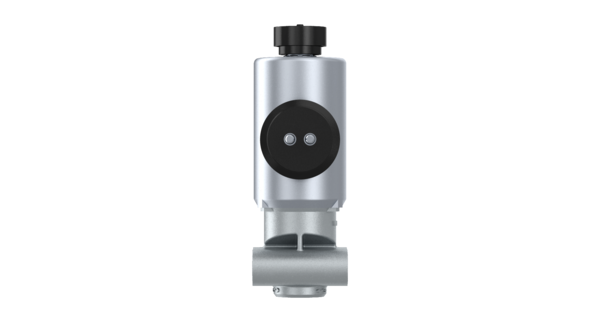

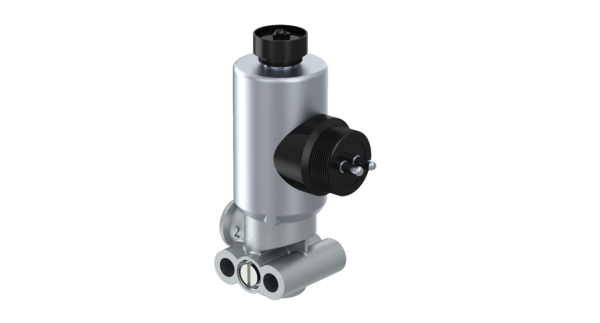

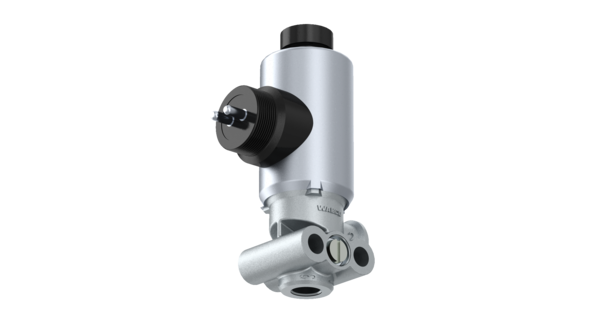

Solenoid Valve
Part Number: 4721726000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.28768 |
| Electrical connection | M27 x 1 |
| Exhaust | 2.2 mm |
| Max. operating pressure | 12.5 bar |
| Multi nominal diameter (from port 1 to x) | 2.2 mm |
| Nominal diameter | 2.2 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
| Product category | Device |
| Protection class | IP 6K6, IP 6K9K |
| Rated current | 410 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Normally closed |
| Voltage | 24 V |
| GTIN | 04057875218302 |
| Size (mm x mm x mm) | 116 x 62 x 40 |
| UPC | 193133443193 |
| Weight (kg) | 0.54 |
| Weight (lb) | 1.1905 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ALEXANDER DENNIS | 658072 |
| DAF | 1327108 |
| DAF | 867177 |
| DAF | 0867177 |
| EVOBUS | 82855460000 |
| EVOBUS | A0009970712 |
| FELDBINDER | 001847 |
| FREIGHTLINER | TDA2S4721726000 |
| IRISBUS | 41016830 |
| IVECO | 41016830 |
| IVECO | 42320501 |
| IVECO | 4752910 |
| IVECO | 4818960 |
| KENWORTH | S4721726000 |
| KOMATSU | 65400240 |
| LIEBHERR | 502659608 |
| LIEBHERR | 502985201 |
| LIEBHERR | 502814501 |
| MACK | 6300-4721726000 |
| MERCEDES-BENZ | 0009970712 |
| MERCEDES-BENZ | A0009970712 |
| MERCEDES-BENZ | A6623200358 |
| MERCEDES-BENZ | A0039971136 |
| MERITOR | S4721726000 |
| NEOPLAN | 11017370 |
| NOOTEBOOM | 1157544 |
| NOOTEBOOM | 4031615 |
| PACCAR | 0865680R |
| PETERBILT | S4721726000 |
| RENAULT | 5001843881 |
| RENAULT | 5010376941 |
| RENAULT | 5021170194 |
| SCANIA | 1934962 |
| SCHMITZ CARGOBULL | 050805 |
| SCHMITZ CARGOBULL | 50805 |
| SCHMITZ CARGOBULL | INSO120005 |
| SCHMITZ CARGOBULL | INS0120005 |
| SCHWARZMÜLLER | 35176 |
| SOLARIS | 1102540010 |
| TEREX | 65400240 |
| VDL | 25100256000 |
| VDL | 20190351 |
| VDL | 190351 |
| VOLVO | S4721726000 |
| VOLVO | S472 172 600 0 |
| VOLVO | WAB4721726000 |
| YUTONG | 350600709 |
| YUTONG | 3506-00709 |
| ZORZI | 1013004 |
