Description

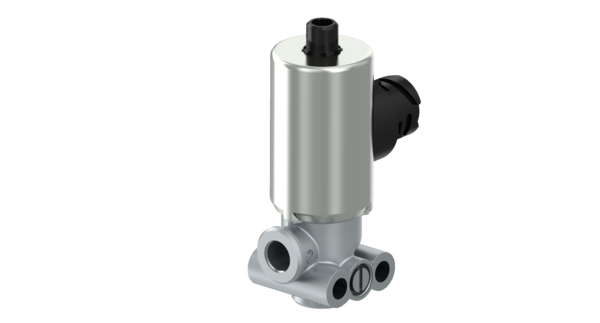

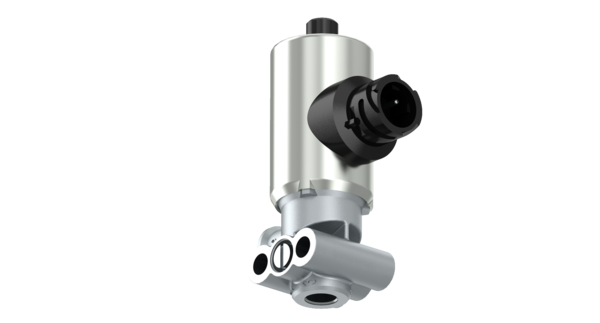

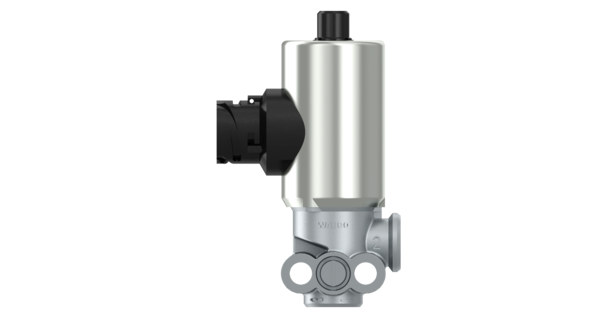

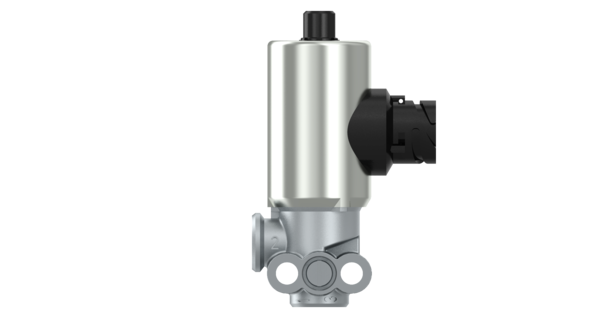

Solenoid Valve
Part Number: 4721737070
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.295 |
| Electrical connection | DIN 72 585 A1-2.1-Sn/K1 |
| Exhaust | 4.0 mm |
| Max. operating pressure | 11.0 bar |
| Multi nominal diameter (from port 1 to x) | 4 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Port thread 3 | M12 x 1.5 |
| Product category | Device |
| Protection class | IP 6K9K, IP 6K7 |
| Rated current | 1410 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Normally Open |
| Voltage | 12 V |
| GTIN | 04057875218524 |
| Size (mm x mm x mm) | 114 x 68 x 38 |
| UPC | 193133311201 |
| Weight (kg) | 0.542 |
| Weight (lb) | 1.1949 |
