Description

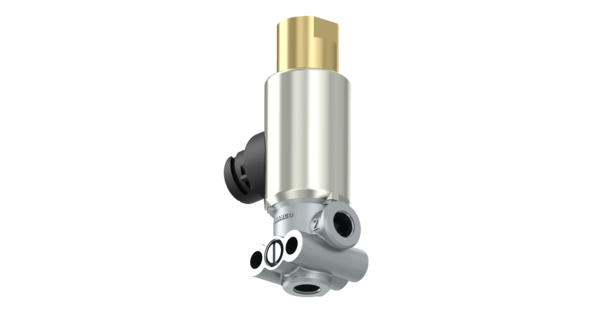

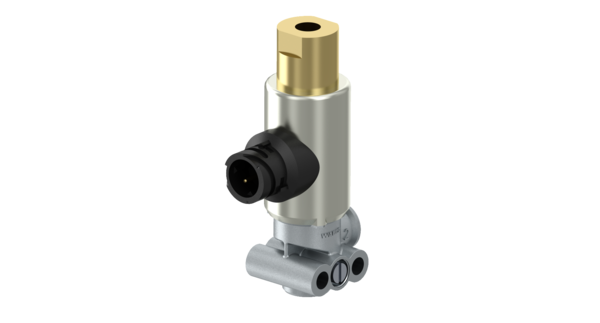

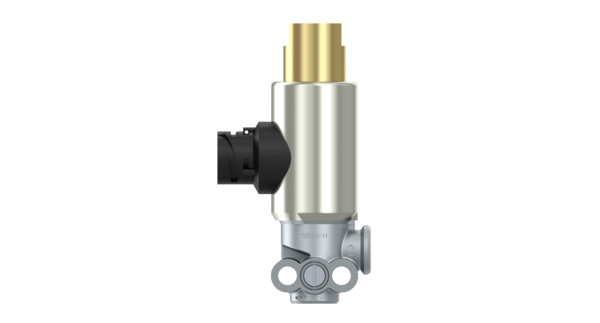

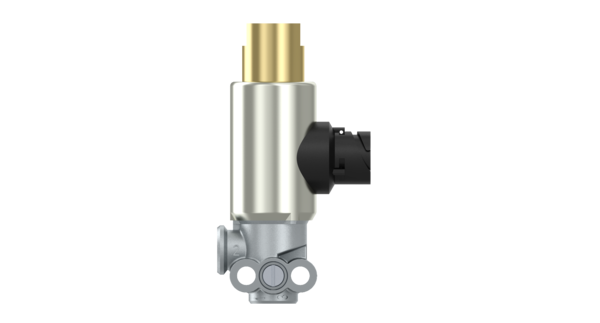

Solenoid Valve
Part Number: 4721709970
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.3315 |
| Electrical connection | DIN 72 585 A1-2.1-Sn/K1 |
| Exhaust | 4.0 mm |
| Max. operating pressure | 10.2 bar |
| Multi nominal diameter (from port 1 to x) | 4 mm |
| Port thread 1 | 1/4″ – 18 NPTF |
| Port thread 2 | 1/4″ – 18 NPTF |
| Port thread 3 | 1/4″ – 18 NPTF |
| Product category | Device |
| Protection class | IP 6K9K, IP 6K7 |
| Rated current | 1410 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Normally Closed |
| Voltage | 12 V |
| GTIN | 04057875957515 |
| Size (mm x mm x mm) | 39 x 125 x 68 |
| UPC | 193133443155 |
| Weight (kg) | 0.5 |
| Weight (lb) | 1.102 |
OEM Cross References
| Brand | Reference No |
|---|---|
| FREIGHTLINER | TDAS4721709970 |
| GREAT DANE | 40400174 |
| INTERNATIONAL | S4721709970 |
| KENWORTH | S472-170-997-0 |
| MACK | 8235-S4721709970 |
| MACK | 6300-4721709970 |
| MANAC | 228-020 |
| MERITOR | S4721709970 |
| PETERBILT | S472-170-997-0 |
| VOLVO | 25165772 |
| VOLVO | WAB4721709970 |
