Description

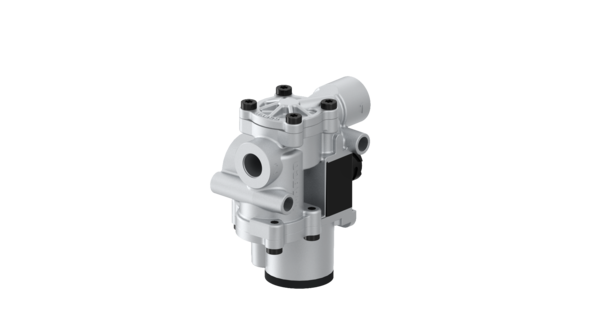

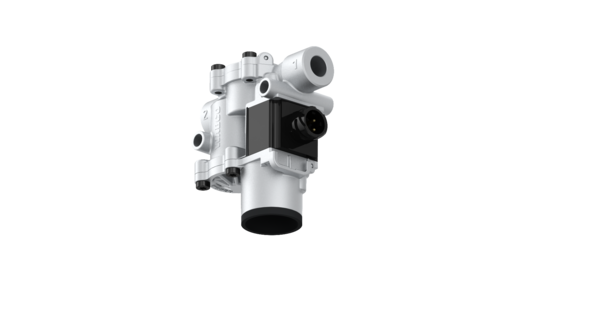

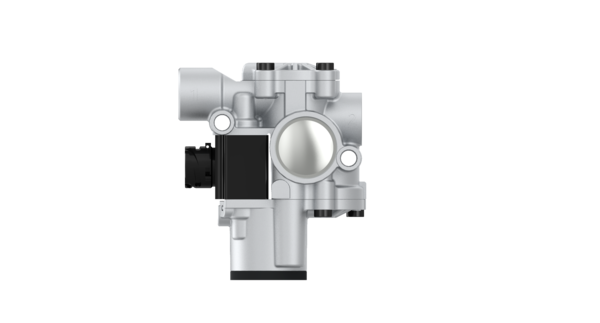

Solenoid Modulator Valve
Part Number: 9721950450
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.741 |
| Distance between holes | 71×20 mm |
| Electrical connection | Bayonet DIN 72 585 A1-3.1-Sn/K1 |
| Exhaust | Modified Integrated silencer |
| Max. operating pressure | 11.0 bar |
| Mounting | 2x Ø 8.5 mm |
| Port thread 1 | RC 3/8″ JIS B 0253 |
| Port thread 2 | RC 3/8″ JIS B 0253 |
| Product category | Device |
| Protection class | IP 68, IP 69K |
| Rated current | 1650 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 24 V |
| GTIN | 04057875302018 |
| Size (mm x mm x mm) | 102 x 121 x 60 |
| UPC | 193133375739 |
| Weight (kg) | 0.685 |
| Weight (lb) | 1.5102 |
OEM Cross References
| Brand | Reference No |
|---|---|
| HINO | 446001820 |
| HINO | S446001820 |
| PACCAR | 1525820 |
