Description

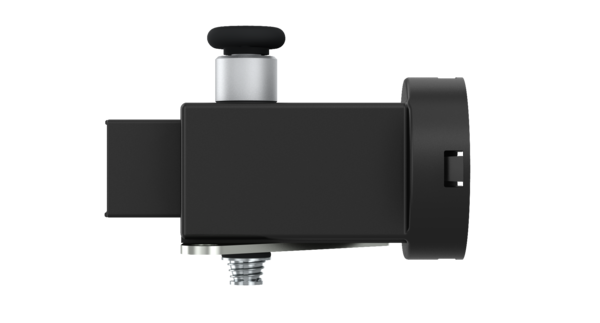

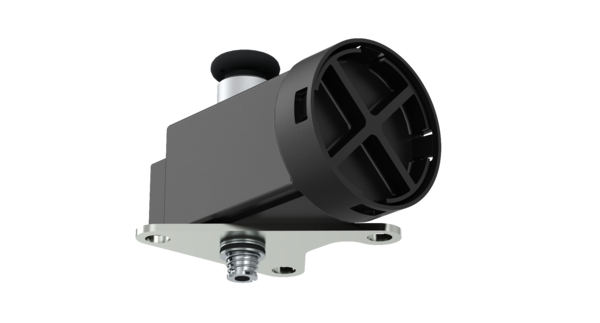

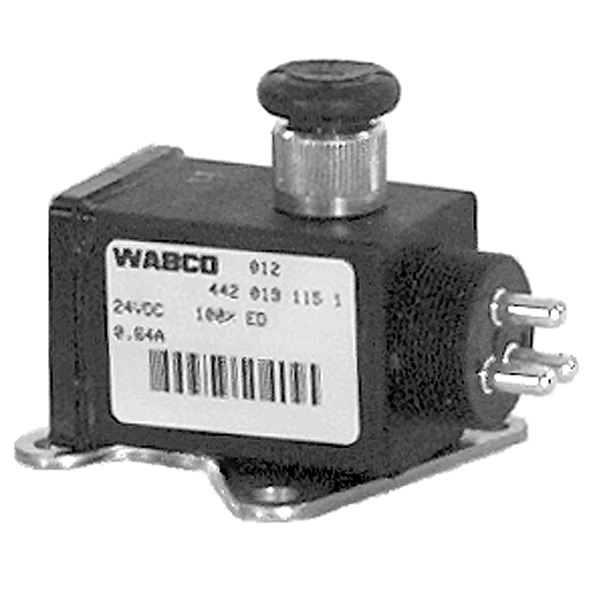

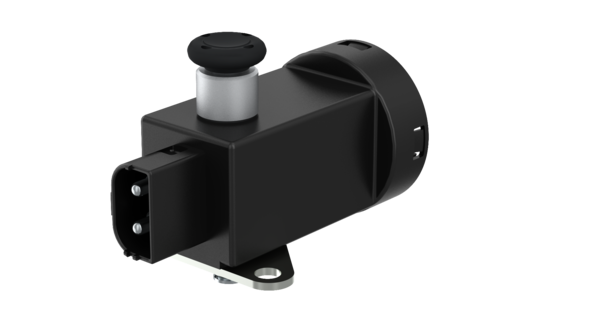

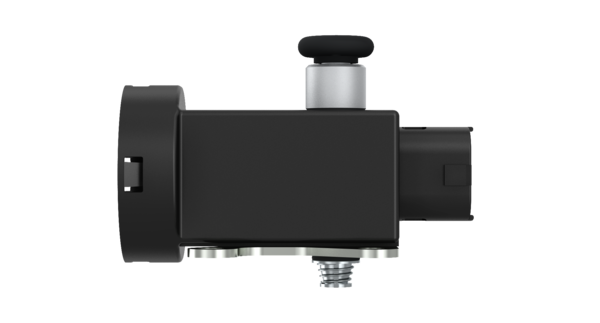

Solenoid
Part Number: 4420191351
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.35145 |
| Distance between holes | 38×42 mm |
| Exhaust | 1.2 mm |
| Max. operating pressure | 13.0 bar |
| Mounting | 3x 6.5 mm |
| Multi nominal diameter (from port 1 to x) | 0.7 mm |
| Port thread 1 | 12H9 |
| Port thread 2 | 1.0 mm |
| Product category | Device |
| Protection class | IP 66 A, IP 68 |
| Rated current | 600 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Type | Normally Closed |
| Voltage | 24 V |
| GTIN | 04057875184393 |
| Size (mm x mm x mm) | 71 x 90 x 55 |
| UPC | 193133263531 |
| Weight (kg) | 0.156 |
| Weight (lb) | 0.344 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1506013 |
| PACCAR | 1506013 |
| SCANIA | 1934589 |
| VOLVO | 276173 |
