Description

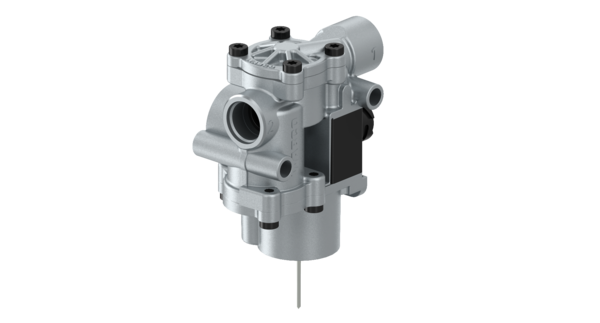

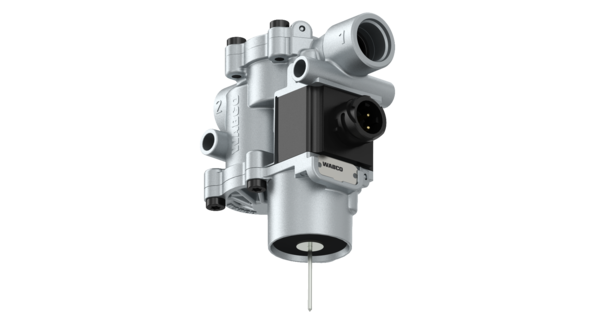

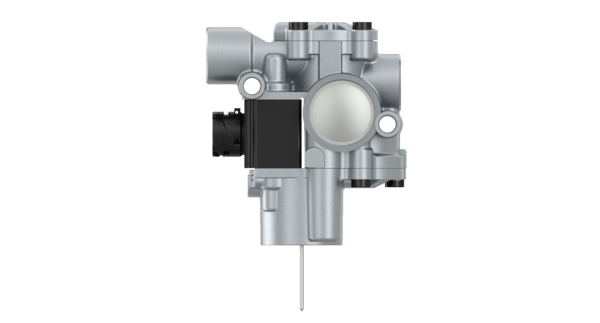

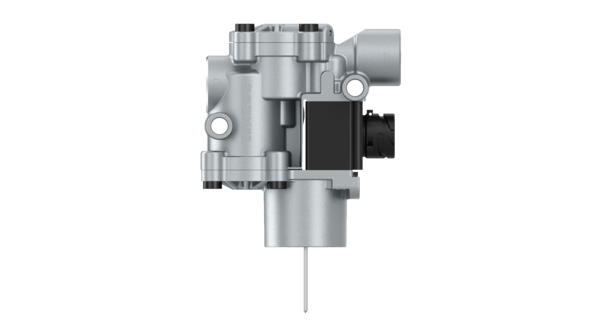

Solenoid
Part Number: 4721951210
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.7442 |
| Distance between holes | 71×20 mm |
| Electrical connection | Bayonet DIN 72 585 A1-3.1-Sn/K1 |
| Exhaust | Flap |
| Max. operating pressure | 11.0 bar |
| Mounting | 2x Ø 8.5 mm |
| Port thread 1 | M22 x 1.5 JED-388-0 |
| Port thread 2 | M22 x 1.5 JED – 388-0 |
| Product category | Device |
| Protection class | IP 67, IP 69K EN 60529, IEC 529 |
| Rated current | 2220 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 12 V |
| GTIN | 04057875319245 |
| Size (mm x mm x mm) | 59 x 106 x 119 |
| UPC | 193133311966 |
| Weight (kg) | 0.684 |
| Weight (lb) | 1.508 |
OEM Cross References
| Brand | Reference No |
|---|---|
| FOTON | L0356D02011A0 |
| FOTON | L0356D02013A0 |
