Description

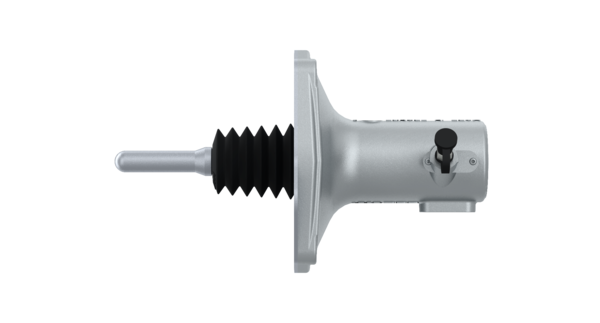

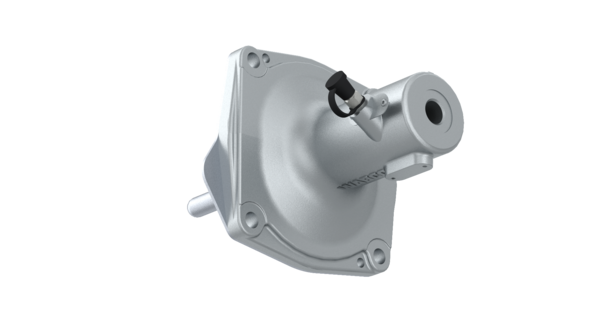

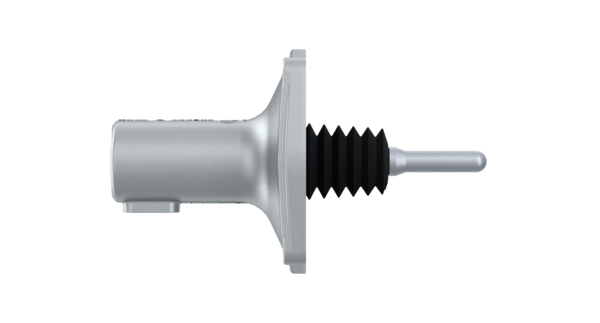

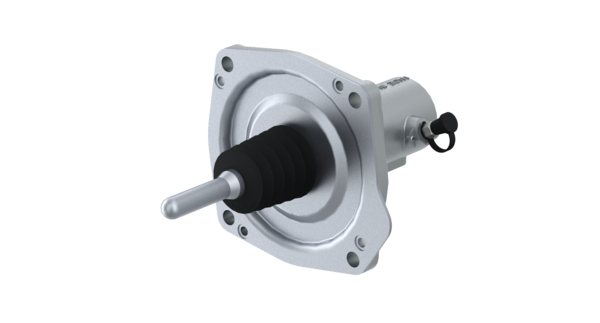

Slave Cylinder, clutch
Part Number: 9700515017
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0 |
| Distance between holes | 130 mm |
| Exchange unit for | 9700515010 |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Max. operating pressure | 50.0 bar |
| Medium | DOT 3 – DOT 4, SAE J 1703 |
| Mounting | 4x Ø 9.0 mm |
| Port thread 1 | M14 x 1.5 |
| Port thread 32 | M7 x 1 |
| Product category | Device |
| Push-rod thread | Ball R6 |
| Stroke | 25.0 mm |
| Technical specification | OE specification |
| Temperature range | -30°C to +100°C |
| GTIN | 04057875300618 |
| UPC | 193133449713 |
| Weight (kg) | 1.1294463 |
| Weight (lb) | 2.49 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MACK | 8235-S9700515017 |
| MACK | 6300-9700515017 |
| MERITOR | S9700515017 |
| VOLVO | 20434544 |
| VOLVO | WAB9700515017 |
