Description

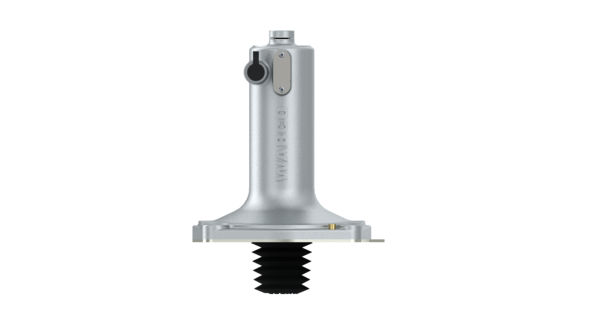

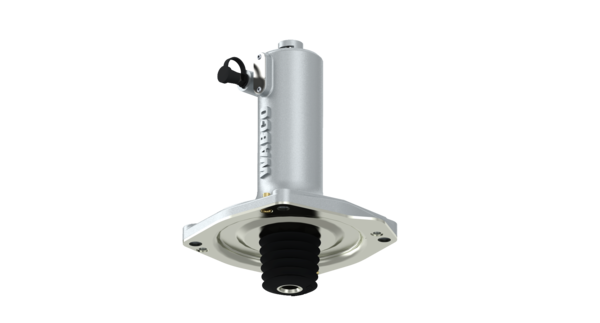

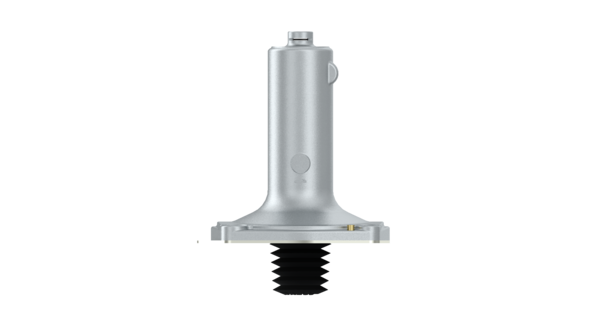

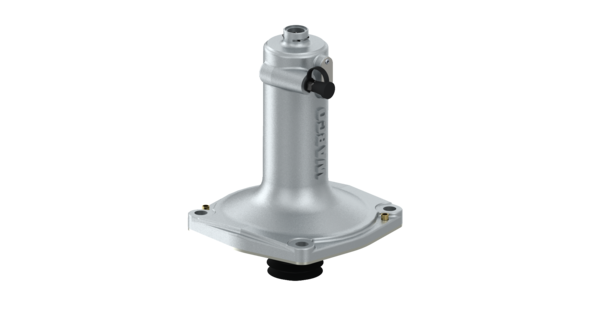

Slave cylinder
Part Number: 9700515030
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.000001 |
| Distance between holes | 130 mm |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Length | 210.0 mm |
| Max. operating pressure | 100.0 bar |
| Medium | Brake fluid SAE J 1703 |
| Mounting | 4x Ø 9.0 mm |
| Port thread 32 | M7 x 1 |
| Product category | Device |
| Push-rod thread | Ball R6 |
| Stroke | 53.3 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 7895851073333 |
| Size (mm x mm x mm) | 1 x 1 x 1 |
| UPC | 193133449720 |
| Weight (kg) | 1.195 |
| Weight (lb) | 2.635 |
OEM Cross References
| Brand | Reference No |
|---|---|
| FREIGHTLINER | TDAS9700515030 |
| INTERNATIONAL | S9700515030 |
| INTERNATIONAL | ZDRS9700515030 |
| KENWORTH | S970-051-503-0 |
| MACK | 6300-9700515030 |
| MERITOR | S9700515030 |
| PETERBILT | S970-051-503-0 |
| VOLVO | TDA S9700515030 |
| VOLVO | WAB9700515030 |
