Description

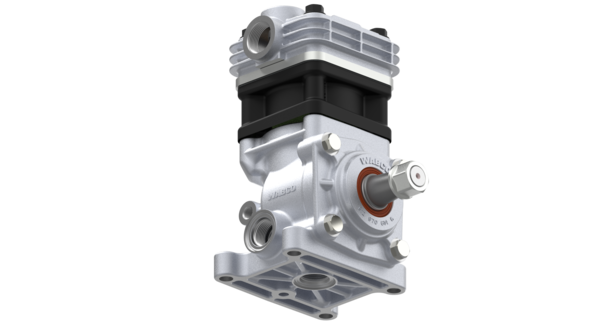

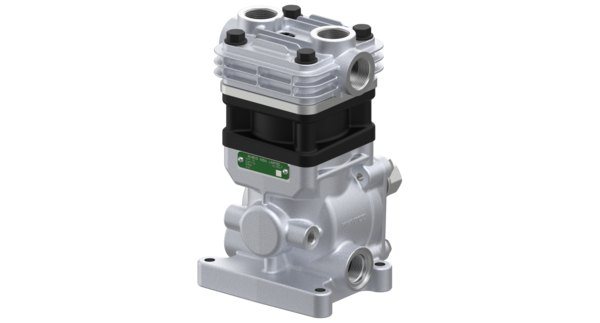

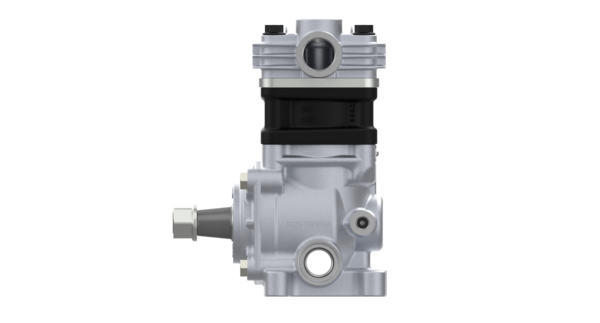

Single-Cylinder compressor, foot mounted
Part Number: 9129700640
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 4.639 |
| Cooling | Air |
| Crankshaft thread | M18 x 1.5 |
| Lubrication | Lubrication supplied from engine |
| Max. operating pressure | 10.0 bar |
| Mounting | Foot mounting |
| Operating speed | 3000 (1/min) |
| Piston diameter | 66.7 mm |
| Piston stroke | 35 mm |
| Port thread 0 | M26 x 1.5 |
| Port thread 2 | M26 x 1.5 |
| Port thread 8.1 | M10 x 1 |
| Port thread 8.2 | M22 x 1.5 |
| Product category | Device |
| Swept volume (cm³) | 120 cm3 |
| Technical specification | OE specification |
| Type | Single Cylinder |
| Type of operation | Normal pressure using unloader |
| GTIN | 04057875344582 |
| Size (mm x mm x mm) | 217 x 128 x 167 |
| UPC | 193133412663 |
| Weight (kg) | 4.92 |
| Weight (lb) | 10.85 |
