Description

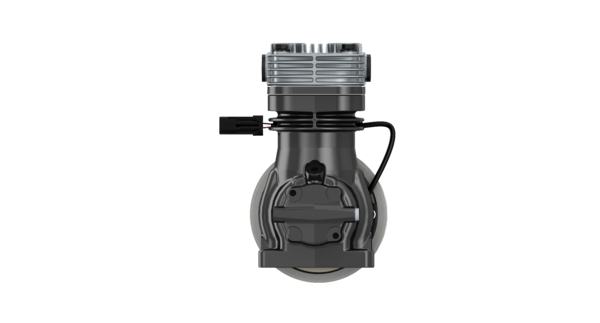

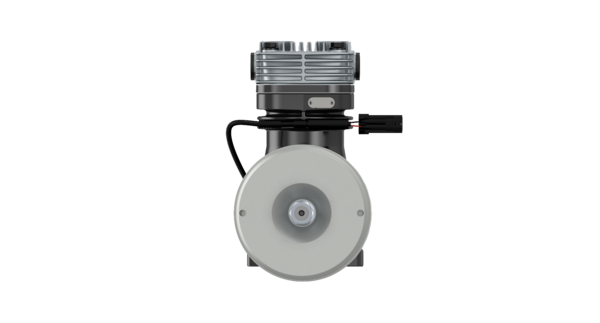

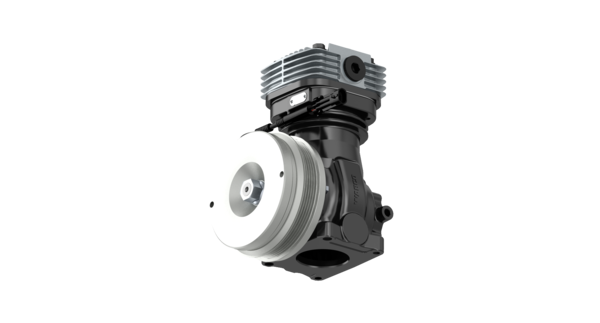

Single-Cylinder compressor, foot mounted
Part Number: 411141103R
Technical Specifications
| Brand | ZF REMAN – WABCO |
| Part type | Remanufactured |
| Calculated Volume (dm³) | 24.96 |
| Cooling | Air |
| Lubrication | Lubrication supplied from engine |
| Max. operating pressure | 8.5 bar |
| Operating speed | 3000 (1/min) |
| Piston diameter | 75 mm |
| Piston stroke | 36 mm |
| Port thread 0 | M26 x 1.5 |
| Port thread 2 | M26 x 1.5 |
| Port thread 8.1 | M10 x 1 |
| Product category | Device |
| Swept volume (cm³) | 159 cm3 |
| Technical specification | OE specification |
| Type | Single Cylinder |
| GTIN | 04057875661115 |
| Size (mm x mm x mm) | 390 x 320 x 200 |
| UPC | 193133400387 |
| Weight (kg) | 16.4 |
| Weight (lb) | 36.16 |
OEM Cross References
| Brand | Reference No |
|---|---|
| SINOTRUK (CNHTC) | 475195120 |
