Description

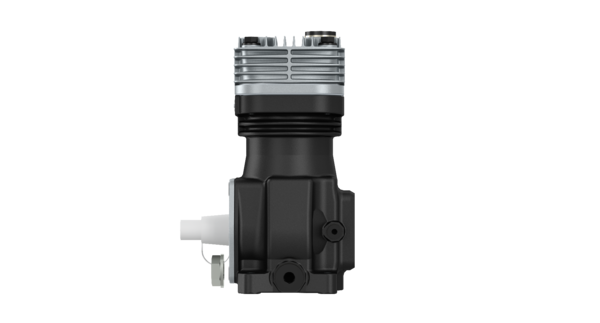

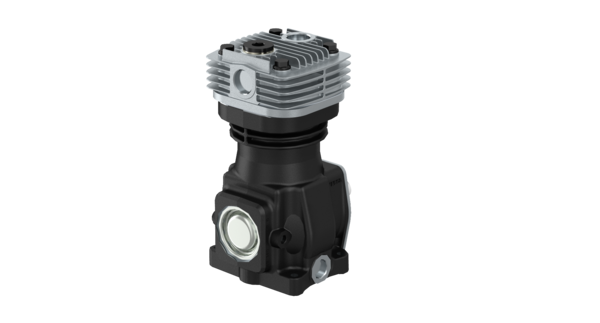

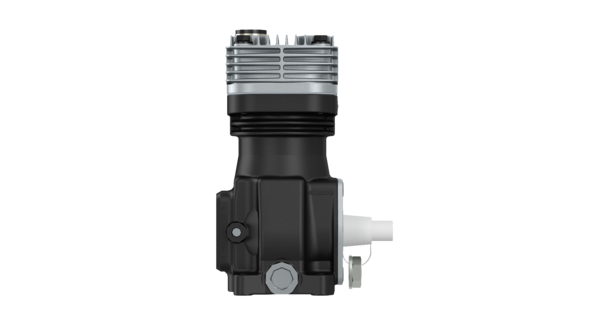

Single-Cylinder compressor, foot mounted
Part Number: 4111415030
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 15.6078 |
| Cooling | Air |
| Crankshaft thread | M18 x 1.5 |
| Lubrication | Lubrication supplied from engine |
| Max. operating pressure | 10.0 bar |
| Mounting | Foot mounting |
| Operating speed | 3000 (1/min) |
| Piston diameter | 75.0 mm |
| Piston stroke | 36 mm |
| Port thread 0 | M26 x 1.5 |
| Port thread 2 | M26 x 1.5 |
| Port thread 8.1 | 2x M10 x 1, 1x closed |
| Port thread 8.2 | 2x M22 x 1.5, 1x closed |
| Product category | Device |
| Swept volume (cm³) | 159 cm3 |
| Technical specification | OE specification |
| Type | Single Cylinder |
| GTIN | 04057875155294 |
| Size (mm x mm x mm) | 232 x 207 x 325 |
| UPC | 193133234449 |
| Weight (kg) | 9.235 |
| Weight (lb) | 20.36 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1505912 |
| FENDT | 385884020110 |
| FENDT | G385884020110 |
