Description

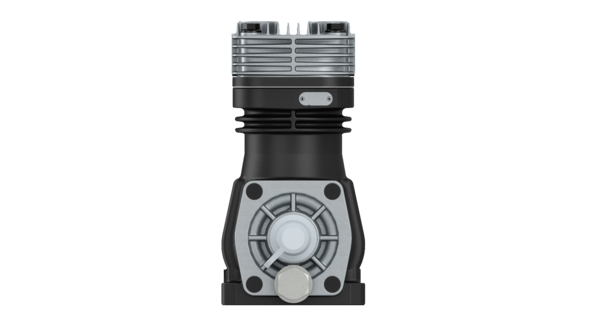

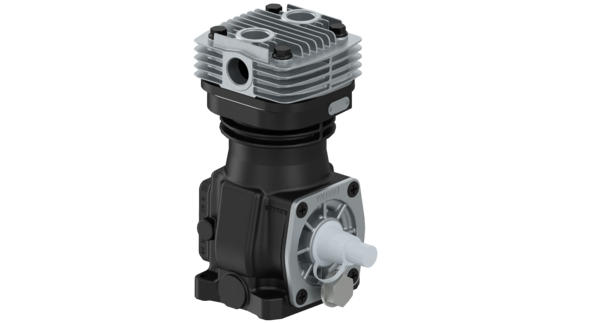

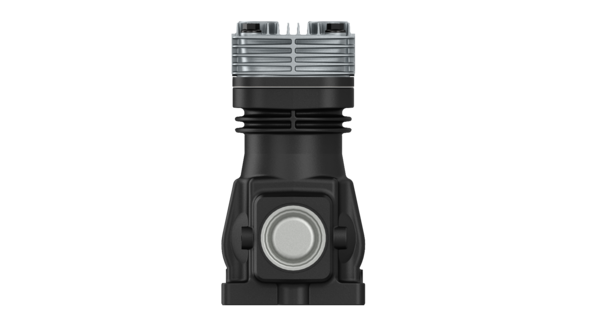

Single-Cylinder compressor, foot mounted
Part Number: 4111417030
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 15.3621 |
| Cooling | Air |
| Crankshaft thread | M18 x 1.5 |
| Lubrication | Lubrication supplied from engine |
| Max. operating pressure | 10.0 bar |
| Mounting | Foot mounting |
| Operating speed | 3000 (1/min) |
| Piston diameter | 75.0 mm |
| Piston stroke | 36 mm |
| Port thread 0 | M26 x 1.5 |
| Port thread 2 | M26 x 1.5 |
| Port thread 8.1 | M10 x 1 |
| Port thread 8.2 | M22 x 1.5 |
| Product category | Device |
| Swept volume (cm³) | 159 cm3 |
| Technical specification | OE specification |
| Type | Single Cylinder |
| GTIN | 04057875155409 |
| Size (mm x mm x mm) | 234 x 202 x 325 |
| UPC | 193133435945 |
| Weight (kg) | 9.109 |
| Weight (lb) | 20.082 |
OEM Cross References
| Brand | Reference No |
|---|---|
| KENWORTH | S4111417030 |
| MACK | 6300-4111417030 |
| MERITOR | S4111417030 |
| PETERBILT | S4111417030 |
| SCANIA | 228439A1 |
| VOLVO | WAB4111417030 |
