Description

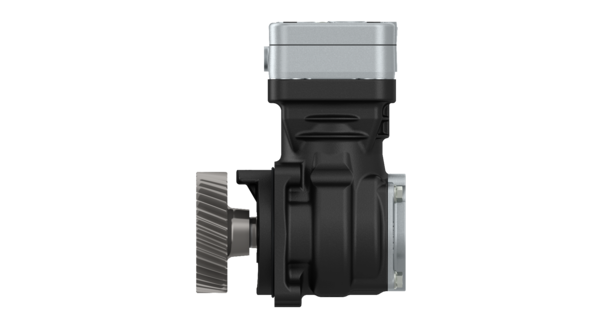

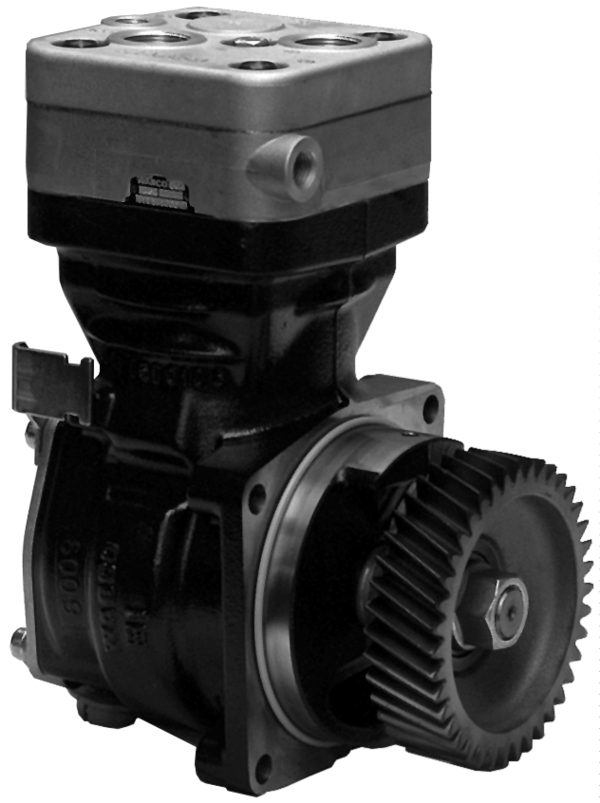

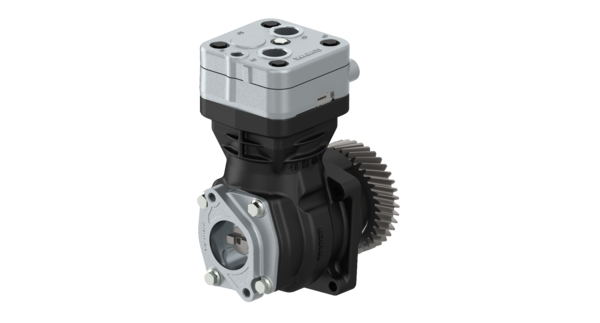

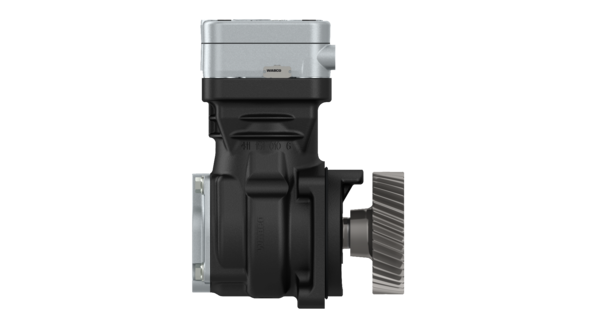

Single-Cylinder compressor, flange mounted
Part Number: 4111510000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 9.288 |
| Cooling | Water |
| Crankshaft thread | M20 x 1.5 LH |
| Lubrication | Lubrication supplied from engine |
| Max. operating pressure | 12.5 bar |
| Mounting | Flange mounting |
| Operating speed | 3000 (1/min) |
| Piston diameter | 85.0 mm |
| Piston stroke | 42 mm |
| Port thread 0 | M26 x 1.5 |
| Port thread 2 | M26 x 1.5 |
| Port thread 8.1 | Ø 6 mm |
| Port thread 9.1 | M14 x 1.5 |
| Port thread 9.2 | M14 x 1.5 |
| Product category | Device |
| Swept volume (cm³) | 238 cm3 |
| Technical specification | OE specification |
| Type | Single Cylinder |
| Type of operation | Normal pressure using unloader |
| GTIN | 7895851075672 |
| Size (mm x mm x mm) | 160 x 270 x 215 |
| UPC | 193133234838 |
| Weight (kg) | 12.04 |
| Weight (lb) | 26.5436 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ALEXANDER DENNIS | AB4111510000 |
| DAF | 1506773 |
| EVOBUS | A9061300615 |
| MERCEDES-BENZ | 9061300615 |
| MERCEDES-BENZ | 9061310501 |
| MERCEDES-BENZ | A9061300615 |
| MERCEDES-BENZ | A9061305615 |
| SCANIA | 1932577 |
