Description

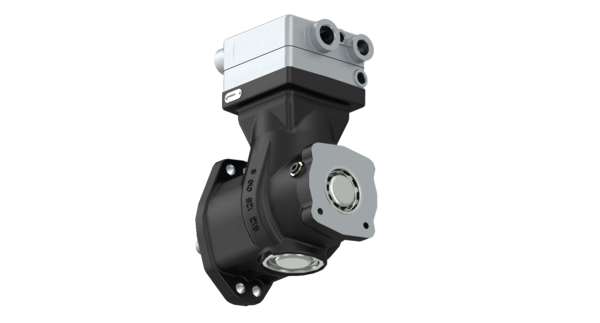

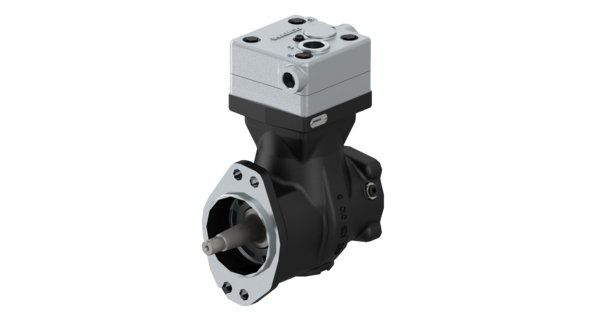

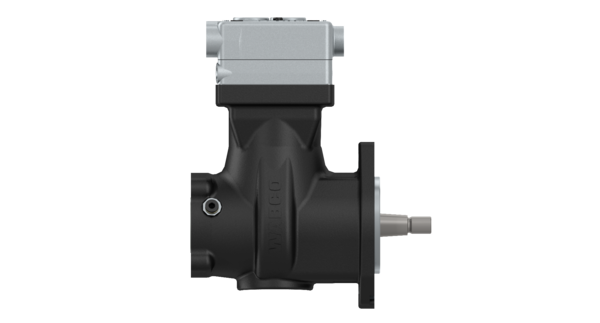

Single-Cylinder compressor, flange mounted
Part Number: 9121250000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 10.5853 |
| Cooling | Water |
| Crankshaft thread | M18 x 1.5 |
| Lubrication | Lubrication supplied from engine |
| Max. operating pressure | 12.0 bar |
| Mounting | Flange mounting |
| Operating speed | 3000 (1/min) |
| Piston diameter | 85.0 mm |
| Piston stroke | 42 mm |
| Port thread 0 | 3/4″ – 14 NPTF |
| Port thread 2 | 3/4″ – 14 NPTF |
| Port thread 8.1 | M10 x 1 |
| Port thread 9 | 2x 1/2″ – 14 NPTF |
| Product category | Device |
| Swept volume (cm³) | 238 cm3 |
| Technical specification | OE specification |
| Type | Single Cylinder |
| Type of operation | High pressure using unloader |
| GTIN | 7895851032880 |
| Size (mm x mm x mm) | 303 x 255 x 137 |
| UPC | 193133447382 |
| Weight (kg) | 14.012 |
| Weight (lb) | 30.8911 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | A4571300515 |
| FREIGHTLINER | TDAS9121250000 |
| JOHN DEERE | RE183135 |
| KENWORTH | S9121250000 |
| MACK | 6300-9121250000 |
| MERITOR | S9121250000 |
| PETERBILT | S9121250000 |
| VALTRA | 86924700 |
| VOLVO | WAB9121250000 |
