Description

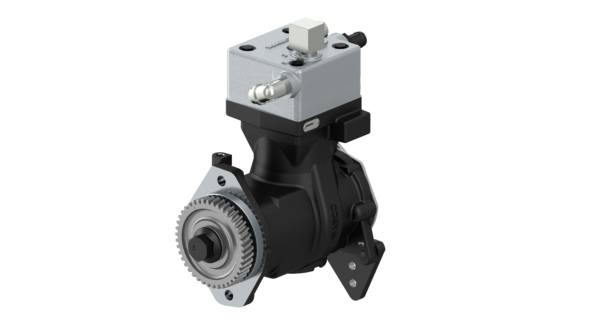

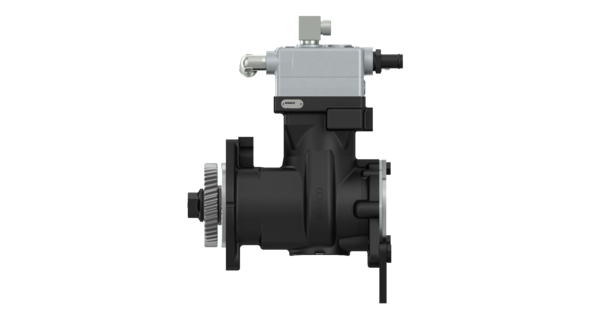

Single-Cylinder compressor, flange mounted
Part Number: 9111555180
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 35.4361 |
| Cooling | Water |
| Crankshaft thread | M20 x 1.5 |
| Lubrication | Lubrication supplied from engine |
| Max. operating pressure | 10.0 bar |
| Mounting | Flange mounting |
| Operating speed | 3000 (1/min) |
| Piston diameter | 85.0 mm |
| Piston stroke | 56 mm |
| Port thread 0 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Port thread 8.1 | 1/8″ – 27 NPTF |
| Port thread 9 | 2x M20 x 1.5 |
| Product category | Device |
| Swept volume (cm³) | 318 cm3 |
| Technical specification | OE specification |
| Type | Single Cylinder |
| GTIN | 04057875273004 |
| Size (mm x mm x mm) | 460 x 355 x 217 |
| UPC | 193133342151 |
| Weight (kg) | 19.561 |
| Weight (lb) | 43.1246 |
OEM Cross References
| Brand | Reference No |
|---|---|
| CUMMINS | D4929623 |
