Description

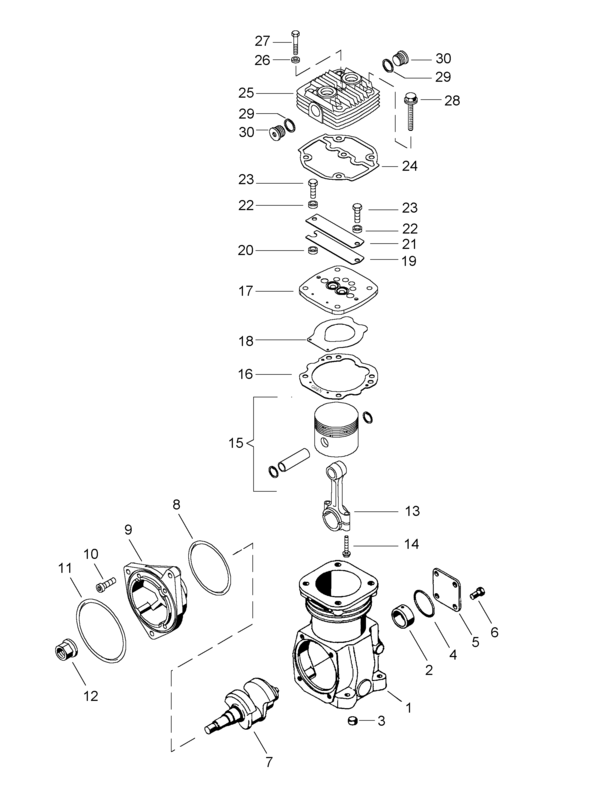

Single-Cylinder compressor, flange mounted
Part Number: 4111460030
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 17.5265 |
| Cooling | Air |
| Crankshaft thread | M20 x 1.5 |
| Lubrication | Lubrication supplied from engine |
| Max. operating pressure | 10.0 bar |
| Mounting | Flange mounting |
| Operating speed | 3000 (1/min) |
| Piston diameter | 90.0 mm |
| Piston stroke | 36 mm |
| Port thread 0 | M26 x 1.5 |
| Port thread 2 | M26 x 1.5 |
| Port thread 8.1 | M10 x 1 |
| Product category | Device |
| Swept volume (cm³) | 229 cm3 |
| Technical specification | OE specification |
| Type | Single Cylinder |
| Type of operation | Normal pressure using unloader |
| GTIN | 04057875155935 |
| Size (mm x mm x mm) | 259 x 202 x 335 |
| UPC | 193133463962 |
| Weight (kg) | 12.734 |
| Weight (lb) | 28.0736 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DEUTZ | 04428408 |
| DEUTZ | 4428408 |
| FENDT | G716880010010 |
| FENDT | 716880010010 |
