Description

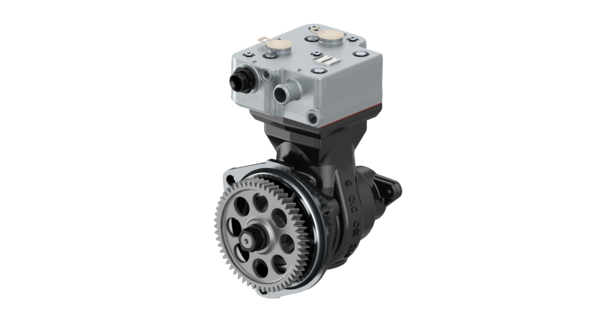

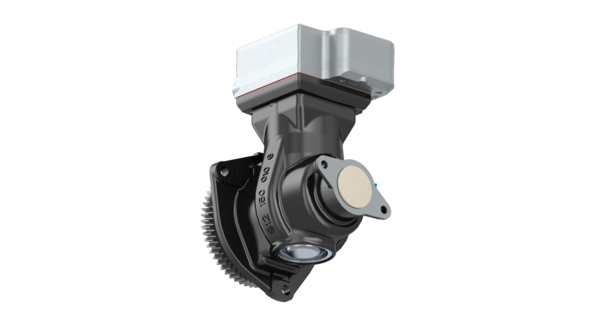

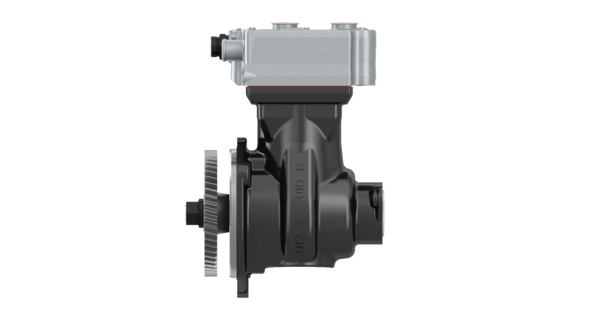

Single-Cylinder compressor, flange mounted
Part Number: 9121500010
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0 |
| Cooling | Water |
| Crankshaft thread | M20 x 1.5 |
| Lubrication | Lubrication supplied from engine |
| Max. operating pressure | 10.0 bar |
| Mounting | Flange mounting |
| Operating speed | 3000 (1/min) |
| Piston diameter | 85.0 mm |
| Piston stroke | 42 mm |
| Port thread 0 | Ø 25 mm |
| Port thread 2 | M24 x 1,5 |
| Port thread 8.1 | M10 x 1.5 |
| Port thread 9 | 2x M18 x 1.5 |
| Product category | Device |
| Swept volume (cm³) | 238 cm3 |
| Technical specification | OE specification |
| Type | Single Cylinder |
| GTIN | 04057875274230 |
| UPC | 193133343950 |
| Weight (kg) | 0.001 |
| Weight (lb) | 0.0022046 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAEWOO | 38100 52010 |
| HYUNDAI | 3810052010 |
