Description

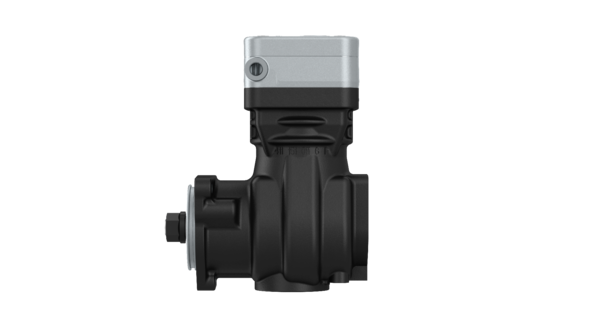

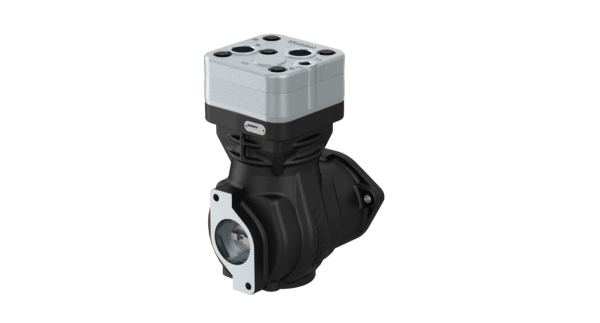

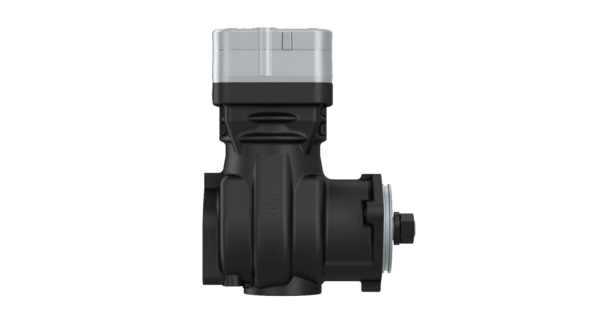

Single-Cylinder compressor, flange mounted
Part Number: 4111510040
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 15.145 |
| Cooling | Water |
| Crankshaft thread | M20 x 1.5 |
| Lubrication | Lubrication supplied from engine |
| Max. operating pressure | 12.5 bar |
| Operating speed | 3000 (1/min) |
| Piston diameter | 85 mm |
| Piston stroke | 42 mm |
| Port thread 0 | M26 x 1.5 |
| Port thread 2 | M26 x 1.5 |
| Port thread 8.1 | Ø 10.2 mm |
| Port thread 9.1 | M14 x 1.5 |
| Port thread 9.2 | M14 x 1.5 |
| Product category | Device |
| Swept volume (cm³) | 238 cm3 |
| Technical specification | OE specification |
| Type | Single Cylinder |
| Type of operation | High pressure using unloader |
| GTIN | 04057875155966 |
| Size (mm x mm x mm) | 200 x 233 x 325 |
| UPC | 193133420224 |
| Weight (kg) | 11.655 |
| Weight (lb) | 25.6948 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MAN | 51541017240 |
| NEOPLAN | 51541017240 |
| PACCAR | 9500928 |
