Description

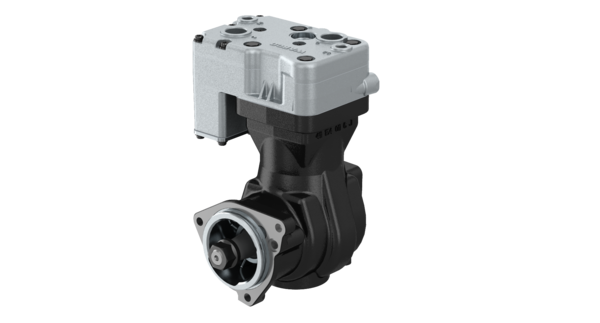

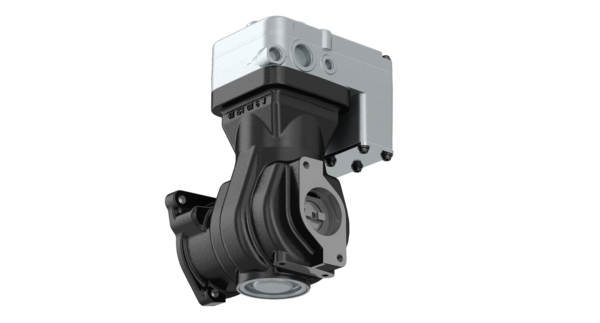

Single-Cylinder compressor, flange mounted
Part Number: 4123520030
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 12.64 |
| Cooling | Water |
| Crankshaft thread | M20 x 1.5 |
| Lubrication | Lubrication supplied from engine |
| Max. operating pressure | 14.0 bar |
| Mounting | Flange mounting |
| Operating speed | 3000 (1/min) |
| Piston diameter | 85 mm |
| Piston stroke | 62 mm |
| Port thread 0 | M26 x 1.5 |
| Port thread 2 | M26 x 1.5 |
| Port thread 8.1 | Ø 10.2 mm |
| Port thread 9.1 | M14 x 1.5 |
| Port thread 9.2 | M14 x 1.5 |
| Product category | Device |
| Swept volume (cm³) | 352 cm3 |
| Technical specification | OE specification |
| Type | Single Cylinder |
| Type of operation | Normal pressure using unloader |
| GTIN | 04057875156147 |
| Size (mm x mm x mm) | 195 x 216 x 300 |
| UPC | 193133235330 |
| Weight (kg) | 11.62 |
| Weight (lb) | 25.62 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1524855 |
| MAN | 51541007005 |
| NEOPLAN | 51541007005 |
